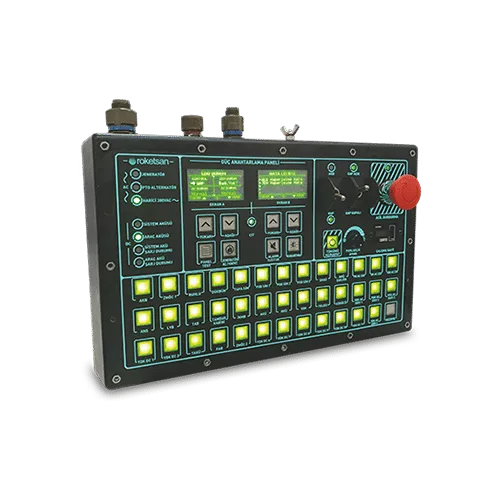

MILITARY POWER SWITCHING UNIT- PSU336

MILITARY POWER SWITCHING UNIT- PSU336

Modular design, easy repair, and maintenance are designed to be made. The inner and outer surfaces are made of crack and corrosion resistant material. It is resistant to corrosion for at least 10 years. PSU336 has RS-422 communication infrastructure. The lighting system is available also for night use. PSU336 has handles for convenient transportation. It includes an emergency response button to disable the system in case of emergency.

Request for Quatation
Name
Field is required!
Field is required!
Surname
Field is required!
Field is required!
Phone
Invalid phonenumber!
Invalid phonenumber!
Email
Field is required!
Field is required!
Company Name
Field is required!
Field is required!
Title
Field is required!
Field is required!
  • - Select a Country -
  • Afghanistan
  • Albania
  • Algeria
  • Andorra
  • Angola
  • Antigua and Barbuda
  • Argentina
  • Armenia
  • Australia
  • Austria
  • Azerbaijan
  • Bahamas
  • Bahrain
  • Bangladesh
  • Barbados
  • Belarus
  • Belgium
  • Belize
  • Benin
  • Bhutan
  • Bolivia (Plurinational State of)
  • Bosnia and Herzegovina
  • Botswana
  • Brazil
  • Brunei Darussalam
  • Bulgaria
  • Burkina Faso
  • Burundi
  • Cabo Verde
  • Cambodia
  • Cameroon
  • Canada
  • Central African Republic
  • Chad
  • Chile
  • China
  • Colombia
  • Comoros
  • Congo
  • Cook Islands
  • Costa Rica
  • Croatia
  • Cuba
  • Cyprus
  • Czechia
  • Côte d'Ivoire
  • Democratic People's Republic of Korea
  • Democratic Republic of the Congo
  • Denmark
  • Djibouti
  • Dominica
  • Dominican Republic
  • Ecuador
  • Egypt
  • El Salvador
  • Equatorial Guinea
  • Eritrea
  • Estonia
  • Eswatini
  • Ethiopia
  • Faroe Islands
  • Fiji
  • Finland
  • France
  • Gabon
  • Gambia
  • Georgia
  • Germany
  • Ghana
  • Greece
  • Grenada
  • Guatemala
  • Guinea
  • Guinea-Bissau
  • Guyana
  • Haiti
  • Honduras
  • Hungary
  • Iceland
  • India
  • Indonesia
  • Iran (Islamic Republic of)
  • Iraq
  • Ireland
  • Israel
  • Italy
  • Jamaica
  • Japan
  • Jordan
  • Kazakhstan
  • Kenya
  • Kiribati
  • Kosovo
  • Kuwait
  • Kyrgyzstan
  • Lao People's Democratic Republic
  • Latvia
  • Lebanon
  • Lesotho
  • Liberia
  • Libya
  • Lithuania
  • Luxembourg
  • Madagascar
  • Malawi
  • Malaysia
  • Maldives
  • Mali
  • Malta
  • Marshall Islands
  • Mauritania
  • Mauritius
  • Mexico
  • Micronesia (Federated States of)
  • Monaco
  • Mongolia
  • Montenegro
  • Morocco
  • Mozambique
  • Myanmar
  • Namibia
  • Nauru
  • Nepal
  • Netherlands
  • New Zealand
  • Nicaragua
  • Niger
  • Nigeria
  • Niue
  • North Macedonia
  • Norway
  • Oman
  • Pakistan
  • Palau
  • Panama
  • Papua New Guinea
  • Paraguay
  • Peru
  • Philippines
  • Poland
  • Portugal
  • Qatar
  • Republic of Korea
  • Republic of Moldova
  • Romania
  • Russian Federation
  • Rwanda
  • Saint Kitts and Nevis
  • Saint Lucia
  • Saint Vincent and the Grenadines
  • Samoa
  • San Marino
  • Sao Tome and Principe
  • Saudi Arabia
  • Senegal
  • Serbia
  • Seychelles
  • Sierra Leone
  • Singapore
  • Slovakia
  • Slovenia
  • Solomon Islands
  • Somalia
  • South Africa
  • South Sudan
  • Spain
  • Sri Lanka
  • Sudan
  • Suriname
  • Sweden
  • Switzerland
  • Syrian Arab Republic
  • Tajikistan
  • Thailand
  • Timor-Leste
  • Togo
  • Tokelau
  • Tonga
  • Trinidad and Tobago
  • Tunisia
  • Turkey
  • Turkmenistan
  • Tuvalu
  • Uganda
  • Ukraine
  • United Arab Emirates
  • United Kingdom of Great Britain and Northern Ireland
  • United Republic of Tanzania
  • United States of America
  • Uruguay
  • Uzbekistan
  • Vanuatu
  • Venezuela (Bolivarian Republic of)
  • Viet Nam
  • Yemen
  • Zambia
  • Zimbabwe
- Select a Country -
Field is required!
Field is required!
Information
Field is required!
Field is required!
Product Description & Technical Document
22-04-2022

DS-1404202212000840-047-EN TECHNICAL DOCUMENT

Purpose

MILITARY POWER DISTRIBUTION UNIT (PDU) units are power distribution systems designed to meet the electrical needs of military units. These units receive AC or DC power from primary power sources and direct it to suitable outputs for various electronic devices with different voltage, current, and frequency requirements.

PDUs are used during military operations such as in military vehicles and camps. These units can power various electronic devices such as computers, communication equipment, lighting systems, heating, and cooling systems. Additionally, some PDU models are specially designed to protect against overload or fluctuations.

PDUs are critical to the success of military operations because reliable and continuous power is essential for soldiers to communicate, coordinate tactical plans, and carry out their missions. By meeting these requirements, PDUs help make military operations more efficient and safer

Power switching involves routing power through a switching regulator. Whereas a linear regulator maintains a continuous load current to create a constant load voltage, a switching regulator maintains a constant current flow by chopping the input voltage into smaller chunks or energy and sending them one at a time into the output.

Industrial electronic systems often use power switching because switching regulators are more efficient — offering 70% to 95% efficiency rather than 40% to 70% efficiency of linear regulators. They can allow for smaller, lighter and quieter systems.

Power switching can be direct or indirect. Direct power switching sends the power line directly through the switch. Direct power switching is most common for industrial electrical systems that use DC power sources. It is also the most common method for currents of 15 amps or less and AC power sources of 120 volts or less.

Indirect power switching, on the other hand, keeps the power line separate from the control panel. For this reason, it is often used with higher voltage and amperage. In this setup, instead of going directly through the switch, the power line runs through a contactor, mechanical relay or solid-state relay. The control switch is separate — it may be local, separate or connected via another relay.

A power distribution unit often has auto-transfer capabilities that allow for automatic switching.

Where to use

Military Power Distribution Units (PDUs) are used in various military environments such as military facilities, ships, and vehicles. These units are designed specifically for military applications that require security, durability, and independence. Military PDUs are built to withstand heavy-duty conditions and are designed to withstand environmental factors such as land, sea, or air. Additionally, military PDUs are usually protected against electromagnetic interference and produce low heat. With these features, military PDUs can be used for powering ammunition depots, radar systems, communication equipment, and other military devices.

Types

A Military Power Distribution Unit (PDU) takes AC or DC power from primary power sources and directs it to appropriate outputs for various electronic devices with different voltage, current, and frequency requirements. Military PDUs can be designed in different types according to different application areas. Here are some types of military PDUs:

  1. Rackmount PDU: Rackmount PDUs used in data centers, military vehicles, and other applications are designed to meet the power needs of electronic equipment inside the cabinet. Rackmount PDUs are placed inside a closed enclosure to protect them from external factors such as sunlight, dust, and water.

  2. Portable PDU: Portable military PDUs are lightweight and durable units that can be used in field conditions. These types of PDUs can be used in moving military units, forward bases, mobile operations, temporary camps, and other field applications.

  3. Wall Mount PDU: Wall-mounted military PDUs can be used in office buildings, medical facilities, military vehicles, and other applications. These types of PDUs are mounted on walls to save space.

  4. Modular PDU: Modular military PDUs have a modular structure to meet different voltage, current, and frequency requirements. These types of PDUs are divided into suitable sections to adapt to a wider range of applications.

  5. Heavy-Duty PDU: Heavy-duty military PDUs are durable units used in harsh environmental conditions. These types of PDUs are used in ships, submarines, airplanes, all-terrain vehicles, or special security facilities.

  6. Intelligent PDU: Intelligent military PDUs are units that can automatically manage the power needs of electronic devices. These types of PDUs can increase energy efficiency and facilitate equipment management with remote monitoring and control features.

These are some typical examples of military PDUs. However, different application areas may require different types of PDUs according to their specific needs.

Features

What to look for in a military PDU

  • Protects downstream equipment from noisy facility power using EMI filters, surge suppressors, and other techniques.
  • Saves space by integrating conditioning and conversion needs instead of housing them as external boxes.
  • Improves integration by providing the exact connectivity and controls needed for site-specific equipment.
  • Complies with general and military-specific standards for electrical power handling equipment.
  • Meets harsh environmental needs.

Programs, Platforms, and Applications

  • Aircraft, naval surface vessels, submarines, UAV, ground vehicles, and others.
  • Development test roles, simulation, support facilities, and forward operating bases powering mobile data processing to multi-rack test and service bays.
  • CSRR, AMDR, VPM, BACN, WIN-T, and other programs.
  • Supporting communications, weapons, intelligence, and research systems.

CAN COMMUNICATION

Military Power Distribution Unit (PDU-70) uses SAE J-1939 standart CAN protocol in order to communicate with the electrical control unit (ECU). 250kbit/s bit rate is chosen in order to provide reliable operation.

The cyclic status messages are transmitted by the Military Power Distribution Unit (PDU-70) in every 100 ms and the cyclic command message is expected from the ECU in every 100 ms. If the command message is not received by the Military Power Distribution Unit (PDU-70) for 400 ms, the emergency output is asserted (logic high) in order to indicate fault but the operational state of the Military Power Distribution Unit (PDU-70) stays the same in order to give the ECU to control the whole system. For the sake of the operation, the Military Power Distribution Unit (PDU-70) should be taken into low power mode as soon as possible. The details of the CAN messages can be found in log file.

RS422 COMMUNICATION

Military Power Distribution Unit (PDU-70) uses RS422 communication in order to send status messages to the diagnostic/ record device in the system. The Military Power Distribution Unit (PDU-70) does not receive any message through RS422, hence no operational change can be performed. By using RS422 communication, a secondary check to CAN communication can be provided.

TRACTION VOLTAGE POWER DISTRIBUTION UNIT FOR ELECTRIC VEHICLES TRACTION AND AUXLIARY HIGH VOLTAGE SYSTEMS INCLUDING:

– Active unit include traction voltage contactors and contactor controls with Voltage and current measurement units.
– Pre-charging circuit to balance voltage levels before and after contactors
– Service charging circuit with contactor switching
– High voltage circuit insulation resistance measurement & monitoring
– Fuse protection for high and low current component output
– Hazardous voltage interlock loop (HVIL)

Custom, COTS, COTS-Modified

  • NERO specializes in application-specific PDUs.
    • Rackmount chassis from 0U to 24U, to rack sized.
    • Custom enclosures for non-rack applications.
    • Ac, dc, 400 Hz — up to 600 volts, 400 amps.
  • We have nearly 300 standard basic and smart PDUs.
    • 1-phase, 3-phase, 15-, 20-, and 30-amp models.
    • 1U, 2U, 3U, and vertical 0U configurations.

Conversion, Conditioning, and Control

  • Meet EMI standards using filters and shielded enclosures.
  • Mitigate voltage spikes/transients using surge suppression.
  • Integration of ac and dc sources.
  • Conversions for ac-ac, ac-dc, dc-dc, and dc-ac.
  • Local and remote power monitoring and switching.
  • Individually breakered branches.
  • EPO and interlock integration and remote panels.

Networked and Non-networked

  • Non-networked PDUs still offer some remote switching through discrete signals from remote panels.
  • Networked PDUs offer remote control and monitoring over Ethernet using HTTP/S, SSH, Telnet, and SNMP.
  • Remote switching of outlets.
  • Remote monitoring of inlet current, voltage, and power.
  • Event alerts for startup, user login, outlet state change, EPO, current and voltage setpoint excursion, and configuration changes (via SNMP, email, SMS).
  • Scripted automation through Telnet, SSH, SNMP, or RESTful API over HTTP/S.

This PSU Features

  • Information Screen
  • PSU On / Off Switch and Led
  • Active Section Selection Switch and Leds
  • Generator Operating/Stop Button
  • Emergency Stop Button
  • Emergency Stop LED Indicator
  • Alarm Reset Button
  • Generator LED Indicator
  • PTO Alternator LED Indicator
  • Panel Test Button
  • Operation Hour Indicator
  • System Battery Led Indicator (Green)
  • Vehicle Battery Led Indicator (Green)
  • Vehicle Battery Charge Status Led Indicator (Red)
  • System Battery Charge Status Led Indicator (Red)
  • BIT Status Inquiry Button
  • On/Off Buttons (In number of Sub-systems)
  • On/Off All Button are present.

Test Standarts

A Military Power Distribution Unit (PDU) is a critical component used to manage the power needs of various electronic devices in military platforms. Since military PDUs must provide reliable and continuous performance in harsh environments, it is important to create them according to appropriate test standards. Here are some military PDU test standards:

  1. MIL-STD-1399: This standard determines the electromagnetic compatibility of switchgear. Military PDUs must meet the requirements of this standard and take filtering and protection measures to minimize electromagnetic interference.

  2. MIL-STD-704: This standard is a standard for aircraft power systems and defines the requirements for the aircraft’s main power system. Military PDUs must have appropriate voltage, frequency, current, and fluctuation tolerances and be able to operate reliably under abnormal conditions.

  3. MIL-STD-1275: This standard is a standard for vehicle power systems and describes the DC power collected from vehicle power sources in terms of electromagnetic compatibility, fluctuations, etc. Military PDUs must meet the requirements of this standard for vehicle power systems and be able to operate reliably even while the vehicle is moving.

  4. MIL-STD-810: This standard determines the usability of military equipment in various environmental conditions. Military PDUs must be resistant to the manufacturer’s specified temperature, humidity, vibration, impact, etc. conditions.

  5. MIL-STD-461: This standard determines electromagnetic compatibility tests. Military PDUs must be properly tested with electromagnetic compatibility tests and be able to be rendered ineffective even when exposed to high levels of electromagnetic interference.

  6. MIL-STD-901: This standard sets shock testing requirements for shipboard machinery, equipment, and systems. Military PDUs used in naval applications must meet the shock testing requirements of this standard.

These are some typical examples of military PDU test standards that require the creation of military PDUs according to appropriate test standards. However, different application areas may apply different standards according to their specific testing needs.

Compliance and Standards

  • Certified AS9100 with ISO 9001.
  • TAA, ITAR, and NIST compliant.
  • General MIL-STDs 461, 810, 901, 167, and others.
  • Platform-specific MIL-STDs 1399, 704, and 1275.
  • Environment and reliability testing/certification when required.
  • UL and CE certification (others when required).

What does it do

A Military Power Distribution Unit (PDU) is a system used to manage the power needs of various electronic devices in military platforms. Military PDUs provide appropriate outputs for electronic devices with different voltage, current, and frequency requirements, ensuring their reliable and continuous operation.

Military PDUs can also reduce or increase the AC or DC power from primary power sources to different voltage levels, making it possible for different devices to use AC or DC power.

Military PDUs are designed for use in harsh environments and are typically tested according to electromagnetic compatibility and other test standards. Additionally, PDUs are usually compact and made of durable materials capable of withstanding tough conditions.

The usage areas of military PDUs include aircraft, ships, tanks, mobile headquarters, forward bases, temporary camps, and similar locations. These platforms host numerous devices with different power needs, so the efficient and reliable performance of military PDUs is critical.

In conclusion, military PDUs are designed to manage the power needs of various electronic devices, provide reliable and continuous performance, and withstand harsh environments.

Military PDUs often differ from commercial PDUs in some obvious and not so obvious ways. Obvious, is that certain battlefield applications do indeed require extraordinary tolerance of shock, vibration, and weather extremes. Not so obvious, is the need to condition incoming raw power to deliver clean, stable power to mission critical electronics. There are a lot of unique control and connectivity needs in military applications as well. NERO has been meeting the needs for military PDUs in ships, submarines, planes, forward command bases, hardware service bays, and even as support for research and product development for over 30 years.
rack mount power strip, pdu in networking, what is pdu, apc pdu, power distribution board, pdu power distribution unit, power distribution board drone, pdu server rack, protocol data unit, pdu vs ups, pdu electrical, power distribution unit for rack, pdu training, rack power distribution unit, 19 inch rack mount brackets, power distribution box automotive, power distribution unit data center, power distribution unit for server rack price, network power distribution unit, power distribution board arduino, power distribution board 5v, data center pdu manufacturers, power distribution board design, 19” rack mount power distribution unit, 19″ rack mount power distribution unit, rack mount pdu with individual switches, mta power distribution, 32a rack mount distro, bdu battery distribution unit, types of pdu in data center, pdu vs power strip, power distribution board 12v, high power distribution module, 42u rack pdu, eaton power distribution unit, power distribution unit automotive, ac power distribution unit, automotive high voltage power distribution unit, power distribution unit for server rack, server rack pdu types, ev high-voltage junction box, rack mounted distribution board, 19 inch rack mount lighting, power distribution board server, power distribution in electric vehicle,

power distribution unit, network pdu, rack pdu, tripp lite pdu, switched pdu, pdu power, rack mount pdu, c13 pdu, rack mount power distribution, 30 amp pdu, portable power distribution unit, server rack pdu, pdu power distribution unit, metered pdu, cyberpower pdu, rack power distribution, 240v pdu, furniture power distribution unit, vertical pdu, 3 phase pdu, smart pdu, pdu power strips, apc pdu rack mount, pdu in data center, server pdu, geist pdu, apc pdu rack, servertech pdu, managed pdu, pdu eaton, power distribution unit for rack, panduit pdu, power pdu rack, server technology pdu, remote managed pdu, rack power distribution unit, lex portable power distribution unit, pdu unit, apc switched pdu, rkpw081915, 1u power distribution unit, remote pdu, liebert pdu, dual power pdu, 15 amp pdu, 220v pdu,

Technical Data Table
Connection Type

RS422, RS485, CANBus

System Weight

5 KG

Operating Temperature

-32 – +55 °C

Storage Temperature

-40°C – +60°C
