The fire suppression cylinders eliminate the high temperature up to 2000 degrees generated within the vehicle by RPG and ATGM attacks striking the armoured vehicle and the pressure created by the explosion with the cooling agent HFC 227EA (FM-200) gas inside them. These ex-tinguisher cylinders zero out loss of both lives and property when they are active by eliminating the high temperature generated by the rocket attack thanks to the cooling gas specification and also eliminating the high pressure with the 42 BAR pressurised operating pressure.
| High speed reaction in a time period less than 6 ms | Cylinder capacity: different sizes between 3 – 10 kg |
|---|---|
| Pressure indicator resistant to vibration | Super pressurisation: Dry nitrogen |
| 360° homogenous distribution | Cylinder nominal pressure : 42 Bar |
| Harmless to human life | Operating temperature : -55 +120 C° |
| Refillable by refill kit | Weight : 5 ±0,5 kg 18±0,5 kg |
| MTBF duration of 250,000 hours | Pyrotechnic activation |
| Extinguisher active substance: HFC 227 ea | MIL-STD-810H, MIL-STD-461G, MIL-STD-1275E certifications |
| Substance helping respiration: Sodium bicarbonate | Conforming to UL, CE GOST-R standards |

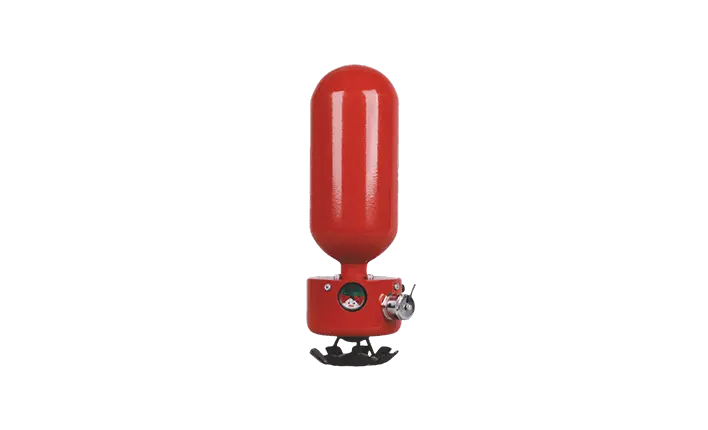

Pyrex extinguishers with gas agent are a special type of fire extinguishing device designed to extinguish fires using a gas agent. These extinguishers effectively extinguish fires using various gas agents such as CO2 and other gases.
The advantages of Pyrex extinguishers include high performance, fast and effective fire extinguishing capabilities, minimal risk of combustion during discharge, and ease of portability.
Generally, Pyrex extinguishers are fire extinguishing devices that should be used in limited spaces or near sensitive equipment such as electrical panels. However, when used properly and with appropriate fire extinguishing procedures, these extinguishers can prevent fire hazards and save lives.
Pyrex fire extinguishers are typically used in areas where sensitive equipment such as electrical panels, computer rooms, data centers, kitchens, laboratories, and other sensitive equipment are located. These types of extinguishers can also be preferred in areas with limited access or where other fire suppression methods may be difficult to apply.
However, the type of fire extinguisher needed may vary depending on the type, size, and characteristics of the fire and area. Therefore, it is important to consult an expert to select the appropriate type of extinguisher before using a fire extinguisher.
The most commonly used types of Pyrex fire extinguishers are:
CO2 Fire Extinguishers: These extinguishers use CO2 gas. CO2 displaces oxygen to extinguish the fire. Therefore, they are effective for extinguishing fires in limited spaces such as electrical fires and restaurant fires.
Inergen Fire Extinguishers: These extinguishers use a gas mixture that mimics atmospheric air. The gas mixture reduces oxygen to eliminate the fire. Therefore, they are preferred in areas with sensitive equipment like data centers and archive rooms.
HFC-227ea Fire Extinguishers: These extinguishers use HFC-227ea gas. HFC-227ea is a safe and clean gas used in environments with flammable and explosive materials.
FM-200 Fire Extinguishers: These extinguishers use FM-200 gas. FM-200 reduces oxygen before cooling the fire. Therefore, they are preferred in areas with electronic equipment.
Pyrex fire extinguishers also come in other types. The type needed may vary depending on the type, size, and characteristics of the fire and area. Therefore, it is important to consult an expert to select the appropriate type of extinguisher before using a fire extinguisher.
Applications
Bank Vaults, Rare Book Stores, Telephone Exchanges, Communication Centers, Control Rooms, Flammable Liquid Storage, Libraries, Electronic Data Processing Studios, Transformer and Switch Rooms, Test Laboratories, Marine (Marine) Systems, Military Vehicles, Armored Vehicles
The features of gas-based fire extinguishers include:
Gas-based fire extinguishers can be subject to many different test standards to ensure their performance and reliability meet specific criteria.
For example, some standards used to test FM-200 gas-based fire extinguishers include:
NFPA 2001: A standard used in the United States for the design, installation, maintenance, and testing of gas-based fire suppression systems.
ISO 14520: A global standard used to test the performance of fire suppression systems.
UL 2127: A standard developed by Underwriters Laboratories in the United States used to test the performance of gas-based fire suppression systems.
EN 15004: A standard used in the European Union to test the performance of fire suppression systems.
These standards establish necessary testing procedures to accurately measure the performance of gas-based fire extinguishers. Fire extinguishers must be tested in compliance with these standards to determine their suitability.
Gas-based fire extinguishers are a type of fire suppression equipment used to control and extinguish fires. Designed to reduce the oxygen supply to a fire, gas agents such as Halon, FM-200, and NOVEC 1230 can be used in these types of fire extinguishers.
Gas-based fire extinguishers are used in various industries, including power generation facilities, computer centers, data processing centers, oil refineries, ships and aircraft, medical facilities and others. The advantages of using gas-based fire extinguishers include:
Effective: Gas agents can quickly extinguish fires by stopping the combustion of materials that cause the fire.
Harmless: Gas agents typically do not damage the materials that cause the fire and are designed to be safe for human health.
Recyclable: Gas agents are not harmful to the environment when released into the atmosphere and can be recycled after the fire is put out.
Fast response time: Gas agents are stored within fire suppression systems and can be rapidly discharged in the event of a fire.
Long-lasting: Gas agents have a long shelf life and can be stored for years, making them an ideal choice for fire suppression systems.
No post-fire cleanup required: Gas agents can be designed to require no cleanup after a fire has been extinguished.
In summary, gas-based fire extinguishers help to quickly control and extinguish fires and are commonly used in a variety of industries.
Extinguisher cylinders have successfully passed high temperature, low temperature, humidity, environmental tests as per MIL-STD-810H military standards. Compared to the other extinguishers in its own segment, having an aluminium body makes it lighter and more practical. These extin-guishers optionally having an operating range between -32 and +120 degrees, have comple-tely environment friendly HFC 227EA gas. The fact that they do not leave any dust or dirt when they are active, eliminates the necessity of cleaning. The extinguishers being activated within 3 milliseconds by pyrotechnic triggers, guarantee to get activated absolutely in all kinds of envi-ronmental conditions and establishes superiority to equivalent electronic valved structures.
Fast, Effective Clean Agent Fire Protection
FM-200® is a colorless, non-toxic gas perfectly suited to protect high value assets in areas that may be normally occupied, in locations where clean-up of other agents is problematic, when storage space for a fire suppression agent is restricted, or when an electrically non-conductive agent is required.
FM-200 fire extinguishing systems are designed to be discharged within 10 seconds into a room, area, or enclosure with the structural integrity to retain the agent.
FM-200 (HFC-227ea) is formed from the elements carbon, fluorine and hydrogen (CF3CHFCF3 – heptafluoropropane). The primary extinguishing mechanism of FM-200 is heat absorption, with a secondary chemical contribution from the thermal decomposition of FM-200 in the flame.
FM-200 leaves no residue and is safe for use in occupied spaces.
automatic fire extinguisher, automatic fire suppression system, types of fire suppression systems, automatic fire extinguishing system, automatic fire suppression system for vehicles, automatic fire suppression system types, automatic fire extinguisher system pdf, automatic fire extinguishing system vs automatic sprinkler system, outdoor fire suppression system, automatic fire suppression system for server room, automatic fire suppression system for food truck, automatic fire suppression system for home, automatic fire suppression system for electrical panels, automatic extinguishing system kitchen, automatic fire suppression system price, automatic fire extinguisher for home, automatic fire suppression system for restaurant, replace fire sprinkler head cost, drag racing fire suppression systems, fire suppression system examples, aircraft engine fire extinguishing system pdf, what is a disadvantage of multi-class dry chemical fire extinguishers?, cargo compartment a320, fixed fire fighting system onboard ship, fire suppression sprinkler system cost, how to install fire suppression system in race car, 6 types of fixed fire extinguishing system, automatic kitchen hood fire suppression system, lavatory smoke detector in aircraft, stranger danger iep goals, watchdog automatic fire extinguisher, automatic fire extinguisher system, how to wire a fire suppression system, wildfire protection systems, wildfire structure protection, types of fire fighting system, fire extinguisher metered bottle (1850 cubic inch) – fwd cargo compartment, fire extinguisher in aircraft, how much does a commercial fire sprinkler system cost, kitchen fire suppression system service, aircraft fire protection system pdf, kitchen hood fire suppression system installation near me, dry powder automatic fire extinguisher, vehicle fire suppression system manufacturers, commercial fire suppression system cost, blast synonym, which of these is a type of fixed extinguishing system?, roof sprinkler cooling system, wildfire home protection, what are the 4 types of fire extinguishers?, best roof sprinkler system, class c cargo compartment, fire extinguisher system in building, rooftop fire sprinklers, dust collector explosion vent, fire suppression system pdf, class d cargo compartment, restaurant hood installation cost, do roof sprinklers work?, aircraft cargo fire suppression system, cost to install fire sprinkler system in home, light refraction type smoke detector, fire suppression system control panel, roof sprinkler system for fire, fire extinguisher metered bottle, what are the 5 types of fire extinguishers?, fire extinguisher powder, fire suppression system gas, heat resistant for roof, boeing 737 cargo fire suppression, cargo compartment crossword, commercial fire sprinkler system cost calculator, fire extinguisher types, electrical panel fire extinguisher type, vehicle engine fire suppression system, house fire protection sprinkler system, explosion isolation flap valve, how to pronounce fire extinguisher, how to use fire extinguisher pass, synonym for explode in anger, explosion relief panels, automatic fire extinguisher how it works, kitchen hood fire suppression system design pdf, 787 fire protection system, kitchen fire suppression system near me, fire protection system ppt, fixed extinguishing system examples, aircraft fire protection system quizlet, fire suppression equipment, aircraft fire zones, safety awareness goals speech therapy, cost of fire sprinkler system, fire suppression system installation, residential fire suppression systems, diy fire suppression system, metal roof cooling techniques, roof misting system, rooftop sprinkler system for fire prevention, home fire sprinkler system installation, residential fire sprinkler system cost, 3 types of fire extinguisher, best race car fire suppression system, fire extinguisher classes a b c d, fire sprinkler, what are the two types of fixed fire extinguishing systems?, fire fighting system in industries pdf, smoke detection system in aircraft, safety condition for knowledge, commercial kitchen hood fire suppression system, residential indoor sprinkler system, fire protection system in building ppt, fire suppression system requirements, average cost of commercial fire sprinkler system, types of aircraft fire detection systems, explosion antonyms, evaporative sprinkler system, types of fire protection systems pdf, fire extinguishing system ppt, kitchen fire suppression system nfpa, industrial protection devices, automatic fire extinguisher project report, tube based fire suppression system, types of residential fire sprinkler systems, race car fire suppression system installation, home wildfire protection systems, the types of fire-extinguishing agents for aircraft interior fires are, fire extinguisher types and uses, class b cargo compartment, what are the 4 steps in using a fire extinguisher, types of fixed extinguishing system, co2 fire suppression system for electrical panels, how do airplane smoke detectors work, cargo compartment classification, roof sprinkler head, frontline fire protection, types of smoke detectors in aircraft, fire extinguisher chemical, kitchen fire suppression system installation, automatic hanging fire extinguisher, aircraft fire protection system, fire fighting system pdf, fire extinguisher contains, how much does it cost to install a commercial fire sprinkler system, hvac butterfly valves, roof sprinkler system cost, fenwal fire detection system, fire extinguisher ball antique, fire extinguisher system, fire extinguisher use, automatic fire extinguisher price, what is the color code for fire-extinguisher lines?, fire sprinkler system installation, what is a fixed extinguishing system, what method do fire fighters use as a first method to extinguish a fire?, class e cargo compartment, residential fire sprinkler system on a well, residential fire sprinkler system contractors, what are the 5 types of fire extinguishers and their uses, cargo fire suppression system, what are the 7 types of fire extinguishers?, fire protection system in building pdf, how many types of fire extinguisher, residential fire sprinkler system maintenance, a roof mist cooling system operates primarily at night, 5 uses of fire extinguisher, class a fire extinguisher contents, explode synonym and antonym, self-contained fire suppression system, how to make a homemade sprinkler system, when using a fire extinguisher how far should you stand away from the fire, kitchen fire suppression system requirements, maintenance of fire-detection systems includes the, types of fire extinguishers and their uses, class f fire extinguisher, fire sprinkler system cost calculator, class f cargo compartment, cabin fire sprinkler system, types of fire protection system in building, roof cooling system, aircraft cargo compartment classification, automatic fire extinguisher mini project, fire extinguisher ball disadvantages, fire sprinkler system cost per square foot, filter/regulator – cargo fire extinguisher system, roof sprinkler fire protection, explosion meaning, what occurs when a visual smoke detector is activated?, automatic fire extinguisher ball, types of fire extinguishers, residential fire sprinkler system inspection cost, how to put sprinklers on your roof, sprint car fire suppression system, explosive growth synonym, roof sprinkler system, cooling, fire suppression system installation near me, class c fire extinguisher, fire science techniques, cargo compartment meaning car, roof sprinkler system, aircraft fire extinguisher requirements, class b fire extinguisher, explosion synonym, internal fire extinguisher, fire suppression companies, wildfire defense systems, cargo compartment meaning, cargo compartment car, class a fire extinguisher, fire suppression system cost per square foot, fixed fire fighting system in engine room, where fixed extinguishing systems use halon, explosion relief panels manufacturers, removing fire suppression system, automatic fire suppression system pdf, automatic fire suppression system race car, outdoor fire sprinkler system, fire suppression system
automatic fire extinguisher, automatic fire suppression system, automatic fire suppression, automatic fire extinguishing system, auto fire suppression system, automatic extinguishing system, automatic fire suppression system for vehicles, small automatic fire extinguisher, auto fire suppression, automatic fire suppression system cost, fm200 automatic fire extinguisher, automatic fire suppression system for home, automatic water fire suppression system, marine automatic fire extinguishing systems, automatic co2 extinguisher, deflagration suppression systems, automatic fire extinguisher for server room, automatic portable fire extinguisher, automatic fire extinguisher co2, automatic clean agent fire extinguisher, automatic fire suppression system for electrical panels, automatic suppression, sea fire automatic fire extinguisher, automatic fire suppression system for boat, automatic self contained fire extinguisher, automatic co2 fire extinguisher system, automatic dry chemical fire extinguisher, small automatic fire suppression, automatic co2 extinguishing system, automatic fire extinguisher for boat engine compartment, automatic extinguishing system kitchen, automatic fire control system, home automatic fire extinguisher, automatic discharge fire extinguisher, fire automatic suppression system, firetrace automatic fire suppression system, automatic kitchen fire suppression system, automatic kitchen fire extinguisher, fixed extinguishing system, automatic fire detection and suppression system, automatic foam extinguisher, automatic fire fighting system, automatic halon fire extinguisher, automatic engine fire extinguisher, automatic kitchen hood suppression system, vehicle automatic fire suppression system, automatic water mist fire extinguisher, automatic foam fire extinguisher, automatic fire suppression system for kitchen hood, automatic marine fire extinguisher, automatic fire extinguisher engine bay, automatic fire extinguisher boat, automatic fire suppression system price, co2 automatic fire suppression system, automatic halon system, automatic suppression system, automatic fire extinguisher for home, sea fire automatic halon 1301, automatic co2 fire extinguisher, ceasefire automatic fire extinguisher, explosion suppression system, tire fire extinguishing system, Crew Compartment Fire Suppression System, External Body fire extinguishing system, cabin fire suppression system, external fire suppression system
external fire suppression system, External Body fire extinguishing system, explosion suppression system, cabin fire suppression system, tire fire extinguishing system, automatic fire suppression system, automatic fire extinguishing system, Crew Compartment Fire Suppression System
| Extinguisher Active Substance | Extinguisher active substance: HFC 227 ea |
|---|---|
| Protection Level | IP67 |
| Cylinder Capacity | Different sizes between 3 – 10 kg |
| Cylinder Nominal Pressure | Cylinder nominal pressure : 42 Bar |
| Weight | 5 ±0,5 kg 18±0,5 kg |
| Operating Temperature | -55°C – +120°C |
| Activation | Pyrotechnic Activation |
| Super Pressurisation | Dry nitrogen |
