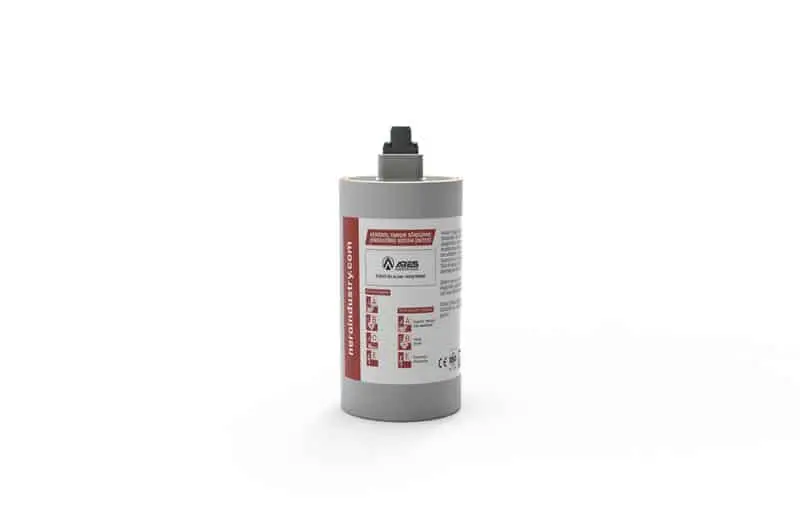

NAFEG AEROSOL FIRE EXTINGUISHER

NAFEG AEROSOL FIRE EXTINGUISHER

NAFEG, provides All-In-One independent system solution in which fire detection and extinguishing are united. Besides it can be controlled by Control Unit, it can also be activated mechanically, not being connected to any electrical power supply. Thanks to the thermal sensor/activator on it, it can detect fire and get activated automatically, at various temperatures (e.g. 57°, 68°,79°, 93°C, 141°C, 180°C) according to different requirements.
After the fire is detected by thermal sensor/activator, the fire is suppressed effectively by the aerosol extinguisher. It provides high flexibility and integrability for active fire protection at different applications with its easy installation and rapid change feature as well as its little weight and dimensions.

Request for Quatation
Name
Field is required!
Field is required!
Surname
Field is required!
Field is required!
Phone
Invalid phonenumber!
Invalid phonenumber!
Email
Field is required!
Field is required!
Company Name
Field is required!
Field is required!
Title
Field is required!
Field is required!
  • - Select a Country -
  • Afghanistan
  • Albania
  • Algeria
  • Andorra
  • Angola
  • Antigua and Barbuda
  • Argentina
  • Armenia
  • Australia
  • Austria
  • Azerbaijan
  • Bahamas
  • Bahrain
  • Bangladesh
  • Barbados
  • Belarus
  • Belgium
  • Belize
  • Benin
  • Bhutan
  • Bolivia (Plurinational State of)
  • Bosnia and Herzegovina
  • Botswana
  • Brazil
  • Brunei Darussalam
  • Bulgaria
  • Burkina Faso
  • Burundi
  • Cabo Verde
  • Cambodia
  • Cameroon
  • Canada
  • Central African Republic
  • Chad
  • Chile
  • China
  • Colombia
  • Comoros
  • Congo
  • Cook Islands
  • Costa Rica
  • Croatia
  • Cuba
  • Cyprus
  • Czechia
  • Côte d'Ivoire
  • Democratic People's Republic of Korea
  • Democratic Republic of the Congo
  • Denmark
  • Djibouti
  • Dominica
  • Dominican Republic
  • Ecuador
  • Egypt
  • El Salvador
  • Equatorial Guinea
  • Eritrea
  • Estonia
  • Eswatini
  • Ethiopia
  • Faroe Islands
  • Fiji
  • Finland
  • France
  • Gabon
  • Gambia
  • Georgia
  • Germany
  • Ghana
  • Greece
  • Grenada
  • Guatemala
  • Guinea
  • Guinea-Bissau
  • Guyana
  • Haiti
  • Honduras
  • Hungary
  • Iceland
  • India
  • Indonesia
  • Iran (Islamic Republic of)
  • Iraq
  • Ireland
  • Israel
  • Italy
  • Jamaica
  • Japan
  • Jordan
  • Kazakhstan
  • Kenya
  • Kiribati
  • Kosovo
  • Kuwait
  • Kyrgyzstan
  • Lao People's Democratic Republic
  • Latvia
  • Lebanon
  • Lesotho
  • Liberia
  • Libya
  • Lithuania
  • Luxembourg
  • Madagascar
  • Malawi
  • Malaysia
  • Maldives
  • Mali
  • Malta
  • Marshall Islands
  • Mauritania
  • Mauritius
  • Mexico
  • Micronesia (Federated States of)
  • Monaco
  • Mongolia
  • Montenegro
  • Morocco
  • Mozambique
  • Myanmar
  • Namibia
  • Nauru
  • Nepal
  • Netherlands
  • New Zealand
  • Nicaragua
  • Niger
  • Nigeria
  • Niue
  • North Macedonia
  • Norway
  • Oman
  • Pakistan
  • Palau
  • Panama
  • Papua New Guinea
  • Paraguay
  • Peru
  • Philippines
  • Poland
  • Portugal
  • Qatar
  • Republic of Korea
  • Republic of Moldova
  • Romania
  • Russian Federation
  • Rwanda
  • Saint Kitts and Nevis
  • Saint Lucia
  • Saint Vincent and the Grenadines
  • Samoa
  • San Marino
  • Sao Tome and Principe
  • Saudi Arabia
  • Senegal
  • Serbia
  • Seychelles
  • Sierra Leone
  • Singapore
  • Slovakia
  • Slovenia
  • Solomon Islands
  • Somalia
  • South Africa
  • South Sudan
  • Spain
  • Sri Lanka
  • Sudan
  • Suriname
  • Sweden
  • Switzerland
  • Syrian Arab Republic
  • Tajikistan
  • Thailand
  • Timor-Leste
  • Togo
  • Tokelau
  • Tonga
  • Trinidad and Tobago
  • Tunisia
  • Turkey
  • Turkmenistan
  • Tuvalu
  • Uganda
  • Ukraine
  • United Arab Emirates
  • United Kingdom of Great Britain and Northern Ireland
  • United Republic of Tanzania
  • United States of America
  • Uruguay
  • Uzbekistan
  • Vanuatu
  • Venezuela (Bolivarian Republic of)
  • Viet Nam
  • Yemen
  • Zambia
  • Zimbabwe
- Select a Country -
Field is required!
Field is required!
Information
Field is required!
Field is required!
Product Description & Technical Document
22-04-2022

DS-14042215271-058-EN TECHNICAL DOCUMENT

Purpose

The purpose of NAFEG Aerosol Fire Extinguisher is to quickly and effectively extinguish small fires. It is designed for use in homes, offices, vehicles, and other enclosed spaces. Additionally, it is a suitable option for special fire types such as electrical equipment and oil kitchen fires. Its purpose is to prevent the spread of fires and ensure the safety of people.

Where to use

NAFEG Aerosol Fire Extinguisher can be used in homes, offices, vehicles, boats, campsites, hotels, restaurants, schools, hospitals, shopping malls, and other enclosed spaces. Additionally, it is a suitable option for special fire types such as electrical equipment and oil kitchen fires.

Types

NAFEG Aerosol Fire Extinguisher has different types that are specially designed for different types of fires. These include:

  1. Home Type: Designed for fires commonly found in homes.

  2. Vehicle Type: Designed for use in cars, trucks, boats, and other vehicles.

  3. Industrial Type: Designed for use in industrial facilities, factories, and other industrial areas.

  4. Kitchen Type: Specifically designed for oil kitchen fires.

  5. Electrical Type: Specifically designed for electrical equipment fires.

Each type has different features and fire extinguishing capacities depending on the type of fire.

Features

Some features of NAFEG Aerosol Fire Extinguisher are:

  1. Fast and Effective: It quickly and effectively extinguishes small fires.

  2. Portable: Its small size makes it easy to carry and can be used quickly in emergency situations.

  3. Easy to Use: It can be easily used with a simple trigger mechanism.

  4. Environmentally Friendly: It does not contain any harmful chemicals and is environmentally friendly.

  5. Long Shelf Life: It has a long shelf life and does not require regular maintenance.

  6. Versatile: It has different types specially designed for different types of fires.

  7. Safe: It is safe to use and does not harm human health.

  8. Minimal Damage: It causes minimal damage during the fire extinguishing process and is easy to clean.

  9. Affordable: It is more affordable compared to other fire extinguishing devices.

Test Standarts

NAFEG Aerosol Fire Extinguisher is tested in accordance with international fire extinguishing test standards. These standards include:

  1. ISO 15779: This standard is used to test the performance of aerosol fire extinguishers.

  2. EN 3-7: This standard is used to test the performance of portable fire extinguishers.

  3. UL 711A: This standard is used to test the performance of aerosol fire extinguishers.

  4. NFPA 10: This standard establishes requirements for the design, installation, maintenance, and testing of fire extinguishing equipment.

These test standards are used to ensure the reliability and performance of NAFEG Aerosol Fire Extinguisher.

What does it do

NAFEG Aerosol Fire Extinguisher is an aerosol spray used for fire extinguishing purposes. It is designed to quickly and effectively extinguish small fires. It can be used in homes, offices, vehicles, and other enclosed spaces. Additionally, it is a suitable option for special fire types such as electrical equipment and oil kitchen fires.

New, Clean and Ecologic

AEROSOL FIRE EXTINGUISHING TECHNOLOGY

There is a new product to provide a system for an effective fire protection within the new generation of fire extinguishers. Meet our aerosol fire extinguishers with strong fire extinguishing performance, fully eco-friendly, cost-effective which includes solid form of potassium salts, that is completely harmless to health and environment. Which also does not require pressure vessels or pressurized containers as well as does not need 100% non-leakage condition within the media.

How does the aerosol extinguisher work?

If we want to define the word of “aerosol”: Briefly, it is a multi-phase system, which is formed by dispersing very small solid or liquid particles which has a size of less than 10 microns in a gas formed media. This multi-phase system is suspends in the volume in which fills the volume for a long time without settling.

Basically, aerosol fire extinguishers are contained inside the metal canisters as a pressed block of solid compounds which are produced with alkaline metal salts and other auxiliary chemicals. Fire detection systems these solid chemical compound blocks in case of a fire.

When these solid compound blocks are triggered and activated by mechanically or automatically with a signal of a fire detection and extinguishing system to the triggering device which is located on the metal container of aerosol fire extinguishers. Therefore, this signal starts the redox (reduction oxidation) reaction within the non-pressurised container which generates highly effective condensed fire extinguishing fog.

This fog contains potassium carbonate and bicarbonate with the avarage particle size of 2 microns, water vapour, carbon dioxide and nitrogen gas.

NAFEG aerosol fire extinguisher gas has physical (cooling effect) and chemical extinguishing effect on fires.

The broad surface and high quantity of small solid aerosol particles provides physical extinguishment. Which also chemically emerges unstable yielded chemicals (free radicals) that are produced from the exothermic reaction of the fire which also feeds the combustion and these free radicals (hydrogen and hydroxyl compounds) acts as a fuel within the fire and after the discharge of the aerosol gas these free radicals reacts with the components of the aerosol gas and this reaction aerosol gas components will absorb these fuels of the fire and obstructs the free radicals to not substitute with the fire reaction which allows NAFEG to extinguish fires with a chemical effect.

Aerosol fire extinguishers are used as the most efficient and cost effective comparing to the gases of Novec 1230 and FM200, which are alternative to Halon gases.

NAFEG-TED, provides All-In-One independent system solution in which fire detection and extinguishing are united. Besides it can be controlled by Control Unit, it can also be activated mechanically, not being connected to any electrical power supply. Thanks to the thermal sensor/activator on it, it can detect fire and get acti-vated automatically, at various temperatures (e.g. 57°, 68°,79°, 93°C, 141°C, 180°C) according to different requirements.
After the fire is detected by thermal sensor/activator, the fire is suppressed effe-ctively by the aerosol extinguisher. It provides high flexibility and integrability for active fire protection at different applications with its easy installation and rapid change feature as well as its little weight and dimensions.

automatic fire extinguisher, automatic fire suppression system, types of fire suppression systems, automatic fire extinguishing system, automatic fire suppression system for vehicles, automatic fire suppression system types, automatic fire extinguisher system pdf, automatic fire extinguishing system vs automatic sprinkler system, outdoor fire suppression system, automatic fire suppression system for server room, automatic fire suppression system for food truck, automatic fire suppression system for home, automatic fire suppression system for electrical panels, automatic extinguishing system kitchen, automatic fire suppression system price, automatic fire extinguisher for home, automatic fire suppression system for restaurant, replace fire sprinkler head cost, drag racing fire suppression systems, fire suppression system examples, aircraft engine fire extinguishing system pdf, what is a disadvantage of multi-class dry chemical fire extinguishers?, cargo compartment a320, fixed fire fighting system onboard ship, fire suppression sprinkler system cost, how to install fire suppression system in race car, 6 types of fixed fire extinguishing system, automatic kitchen hood fire suppression system, lavatory smoke detector in aircraft, stranger danger iep goals, watchdog automatic fire extinguisher, automatic fire extinguisher system, how to wire a fire suppression system, wildfire protection systems, wildfire structure protection, types of fire fighting system, fire extinguisher metered bottle (1850 cubic inch) – fwd cargo compartment, fire extinguisher in aircraft, how much does a commercial fire sprinkler system cost, kitchen fire suppression system service, aircraft fire protection system pdf, kitchen hood fire suppression system installation near me, dry powder automatic fire extinguisher, vehicle fire suppression system manufacturers, commercial fire suppression system cost, blast synonym, which of these is a type of fixed extinguishing system?, roof sprinkler cooling system, wildfire home protection, what are the 4 types of fire extinguishers?, best roof sprinkler system, class c cargo compartment, fire extinguisher system in building, rooftop fire sprinklers, dust collector explosion vent, fire suppression system pdf, class d cargo compartment, restaurant hood installation cost, do roof sprinklers work?, aircraft cargo fire suppression system, cost to install fire sprinkler system in home, light refraction type smoke detector, fire suppression system control panel, roof sprinkler system for fire, fire extinguisher metered bottle, what are the 5 types of fire extinguishers?, fire extinguisher powder, fire suppression system gas, heat resistant for roof, boeing 737 cargo fire suppression, cargo compartment crossword, commercial fire sprinkler system cost calculator, fire extinguisher types, electrical panel fire extinguisher type, vehicle engine fire suppression system, house fire protection sprinkler system, explosion isolation flap valve, how to pronounce fire extinguisher, how to use fire extinguisher pass, synonym for explode in anger, explosion relief panels, automatic fire extinguisher how it works, kitchen hood fire suppression system design pdf, 787 fire protection system, kitchen fire suppression system near me, fire protection system ppt, fixed extinguishing system examples, aircraft fire protection system quizlet, fire suppression equipment, aircraft fire zones, safety awareness goals speech therapy, cost of fire sprinkler system, fire suppression system installation, residential fire suppression systems, diy fire suppression system, metal roof cooling techniques, roof misting system, rooftop sprinkler system for fire prevention, home fire sprinkler system installation, residential fire sprinkler system cost, 3 types of fire extinguisher, best race car fire suppression system, fire extinguisher classes a b c d, fire sprinkler, what are the two types of fixed fire extinguishing systems?, fire fighting system in industries pdf, smoke detection system in aircraft, safety condition for knowledge, commercial kitchen hood fire suppression system, residential indoor sprinkler system, fire protection system in building ppt, fire suppression system requirements, average cost of commercial fire sprinkler system, types of aircraft fire detection systems, explosion antonyms, evaporative sprinkler system, types of fire protection systems pdf, fire extinguishing system ppt, kitchen fire suppression system nfpa, industrial protection devices, automatic fire extinguisher project report, tube based fire suppression system, types of residential fire sprinkler systems, race car fire suppression system installation, home wildfire protection systems, the types of fire-extinguishing agents for aircraft interior fires are, fire extinguisher types and uses, class b cargo compartment, what are the 4 steps in using a fire extinguisher, types of fixed extinguishing system, co2 fire suppression system for electrical panels, how do airplane smoke detectors work, cargo compartment classification, roof sprinkler head, frontline fire protection, types of smoke detectors in aircraft, fire extinguisher chemical, kitchen fire suppression system installation, automatic hanging fire extinguisher, aircraft fire protection system, fire fighting system pdf, fire extinguisher contains, how much does it cost to install a commercial fire sprinkler system, hvac butterfly valves, roof sprinkler system cost, fenwal fire detection system, fire extinguisher ball antique, fire extinguisher system, fire extinguisher use, automatic fire extinguisher price, what is the color code for fire-extinguisher lines?, fire sprinkler system installation, what is a fixed extinguishing system, what method do fire fighters use as a first method to extinguish a fire?, class e cargo compartment, residential fire sprinkler system on a well, residential fire sprinkler system contractors, what are the 5 types of fire extinguishers and their uses, cargo fire suppression system, what are the 7 types of fire extinguishers?, fire protection system in building pdf, how many types of fire extinguisher, residential fire sprinkler system maintenance, a roof mist cooling system operates primarily at night, 5 uses of fire extinguisher, class a fire extinguisher contents, explode synonym and antonym, self-contained fire suppression system, how to make a homemade sprinkler system, when using a fire extinguisher how far should you stand away from the fire, kitchen fire suppression system requirements, maintenance of fire-detection systems includes the, types of fire extinguishers and their uses, class f fire extinguisher, fire sprinkler system cost calculator, class f cargo compartment, cabin fire sprinkler system, types of fire protection system in building, roof cooling system, aircraft cargo compartment classification, automatic fire extinguisher mini project, fire extinguisher ball disadvantages, fire sprinkler system cost per square foot, filter/regulator – cargo fire extinguisher system, roof sprinkler fire protection, explosion meaning, what occurs when a visual smoke detector is activated?, automatic fire extinguisher ball, types of fire extinguishers, residential fire sprinkler system inspection cost, how to put sprinklers on your roof, sprint car fire suppression system, explosive growth synonym, roof sprinkler system, cooling, fire suppression system installation near me, class c fire extinguisher, fire science techniques, cargo compartment meaning car, roof sprinkler system, aircraft fire extinguisher requirements, class b fire extinguisher, explosion synonym, internal fire extinguisher, fire suppression companies, wildfire defense systems, cargo compartment meaning, cargo compartment car, class a fire extinguisher, fire suppression system cost per square foot, fixed fire fighting system in engine room, where fixed extinguishing systems use halon, explosion relief panels manufacturers, removing fire suppression system, automatic fire suppression system pdf, automatic fire suppression system race car, outdoor fire sprinkler system, fire suppression system

automatic fire extinguisher, automatic fire suppression system, automatic fire suppression, automatic fire extinguishing system, auto fire suppression system, automatic extinguishing system, automatic fire suppression system for vehicles, small automatic fire extinguisher, auto fire suppression, automatic fire suppression system cost, fm200 automatic fire extinguisher, automatic fire suppression system for home, automatic water fire suppression system, marine automatic fire extinguishing systems, automatic co2 extinguisher, deflagration suppression systems, automatic fire extinguisher for server room, automatic portable fire extinguisher, automatic fire extinguisher co2, automatic clean agent fire extinguisher, automatic fire suppression system for electrical panels, automatic suppression, sea fire automatic fire extinguisher, automatic fire suppression system for boat, automatic self contained fire extinguisher, automatic co2 fire extinguisher system, automatic dry chemical fire extinguisher, small automatic fire suppression, automatic co2 extinguishing system, automatic fire extinguisher for boat engine compartment, automatic extinguishing system kitchen, automatic fire control system, home automatic fire extinguisher, automatic discharge fire extinguisher, fire automatic suppression system, firetrace automatic fire suppression system, automatic kitchen fire suppression system, automatic kitchen fire extinguisher, fixed extinguishing system, automatic fire detection and suppression system, automatic foam extinguisher, automatic fire fighting system, automatic halon fire extinguisher, automatic engine fire extinguisher, automatic kitchen hood suppression system, vehicle automatic fire suppression system, automatic water mist fire extinguisher, automatic foam fire extinguisher, automatic fire suppression system for kitchen hood, automatic marine fire extinguisher, automatic fire extinguisher engine bay, automatic fire extinguisher boat, automatic fire suppression system price, co2 automatic fire suppression system, automatic halon system, automatic suppression system, automatic fire extinguisher for home, sea fire automatic halon 1301, automatic co2 fire extinguisher, ceasefire automatic fire extinguisher, explosion suppression system, tire fire extinguishing system, Crew Compartment Fire Suppression System, External Body fire extinguishing system, cabin fire suppression system, external fire suppression system

external fire suppression system, External Body fire extinguishing system, explosion suppression system, cabin fire suppression system, tire fire extinguishing system, automatic fire suppression system, automatic fire extinguishing system, Crew Compartment Fire Suppression System

Technical Data Table
Activation

Military Connector (Electric)

Activation Mode

Electric

Extinguishing Volume

1.25m³, 2,5m³, 5m³

Power Supply

1.2A – 24V DC

Discharge Time

4-6 seconds

Discharge Distance

2m

Toxicity

None

Fire Classes It Is Effective

A Class, B Class, C Class, E Class

Dimensions

Ø 88 H 209(125), Ø 88 H 251(250), Ø 88 H 345(500)

Protection Level

IP67(optional)
