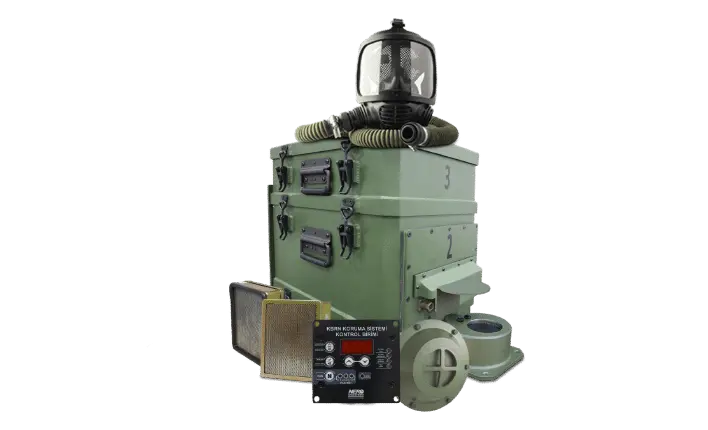

FT-80 OVERPRESSURE FILTRATION SYSTEM

FT-80 OVERPRESSURE FILTRATION SYSTEM

Showing the difference between external pressure and internal pressure on the screen, it gives pressure information. External pressure info is delivered to the sen-sor within the unit via pneumatic hose and it shows the difference with internal pressure on the screen. It gives audio and visual warning under the adjusted pressure value. It has dimout, alarm muting, built-in test features. Requested pressure difference warning can be adjusted manually.

AEP-54 APPROVED

Request for Quatation
Name
Field is required!
Field is required!
Surname
Field is required!
Field is required!
Phone
Invalid phonenumber!
Invalid phonenumber!
Email
Field is required!
Field is required!
Company Name
Field is required!
Field is required!
Title
Field is required!
Field is required!
  • - Select a Country -
  • Afghanistan
  • Albania
  • Algeria
  • Andorra
  • Angola
  • Antigua and Barbuda
  • Argentina
  • Armenia
  • Australia
  • Austria
  • Azerbaijan
  • Bahamas
  • Bahrain
  • Bangladesh
  • Barbados
  • Belarus
  • Belgium
  • Belize
  • Benin
  • Bhutan
  • Bolivia (Plurinational State of)
  • Bosnia and Herzegovina
  • Botswana
  • Brazil
  • Brunei Darussalam
  • Bulgaria
  • Burkina Faso
  • Burundi
  • Cabo Verde
  • Cambodia
  • Cameroon
  • Canada
  • Central African Republic
  • Chad
  • Chile
  • China
  • Colombia
  • Comoros
  • Congo
  • Cook Islands
  • Costa Rica
  • Croatia
  • Cuba
  • Cyprus
  • Czechia
  • Côte d'Ivoire
  • Democratic People's Republic of Korea
  • Democratic Republic of the Congo
  • Denmark
  • Djibouti
  • Dominica
  • Dominican Republic
  • Ecuador
  • Egypt
  • El Salvador
  • Equatorial Guinea
  • Eritrea
  • Estonia
  • Eswatini
  • Ethiopia
  • Faroe Islands
  • Fiji
  • Finland
  • France
  • Gabon
  • Gambia
  • Georgia
  • Germany
  • Ghana
  • Greece
  • Grenada
  • Guatemala
  • Guinea
  • Guinea-Bissau
  • Guyana
  • Haiti
  • Honduras
  • Hungary
  • Iceland
  • India
  • Indonesia
  • Iran (Islamic Republic of)
  • Iraq
  • Ireland
  • Israel
  • Italy
  • Jamaica
  • Japan
  • Jordan
  • Kazakhstan
  • Kenya
  • Kiribati
  • Kosovo
  • Kuwait
  • Kyrgyzstan
  • Lao People's Democratic Republic
  • Latvia
  • Lebanon
  • Lesotho
  • Liberia
  • Libya
  • Lithuania
  • Luxembourg
  • Madagascar
  • Malawi
  • Malaysia
  • Maldives
  • Mali
  • Malta
  • Marshall Islands
  • Mauritania
  • Mauritius
  • Mexico
  • Micronesia (Federated States of)
  • Monaco
  • Mongolia
  • Montenegro
  • Morocco
  • Mozambique
  • Myanmar
  • Namibia
  • Nauru
  • Nepal
  • Netherlands
  • New Zealand
  • Nicaragua
  • Niger
  • Nigeria
  • Niue
  • North Macedonia
  • Norway
  • Oman
  • Pakistan
  • Palau
  • Panama
  • Papua New Guinea
  • Paraguay
  • Peru
  • Philippines
  • Poland
  • Portugal
  • Qatar
  • Republic of Korea
  • Republic of Moldova
  • Romania
  • Russian Federation
  • Rwanda
  • Saint Kitts and Nevis
  • Saint Lucia
  • Saint Vincent and the Grenadines
  • Samoa
  • San Marino
  • Sao Tome and Principe
  • Saudi Arabia
  • Senegal
  • Serbia
  • Seychelles
  • Sierra Leone
  • Singapore
  • Slovakia
  • Slovenia
  • Solomon Islands
  • Somalia
  • South Africa
  • South Sudan
  • Spain
  • Sri Lanka
  • Sudan
  • Suriname
  • Sweden
  • Switzerland
  • Syrian Arab Republic
  • Tajikistan
  • Thailand
  • Timor-Leste
  • Togo
  • Tokelau
  • Tonga
  • Trinidad and Tobago
  • Tunisia
  • Turkey
  • Turkmenistan
  • Tuvalu
  • Uganda
  • Ukraine
  • United Arab Emirates
  • United Kingdom of Great Britain and Northern Ireland
  • United Republic of Tanzania
  • United States of America
  • Uruguay
  • Uzbekistan
  • Vanuatu
  • Venezuela (Bolivarian Republic of)
  • Viet Nam
  • Yemen
  • Zambia
  • Zimbabwe
- Select a Country -
Field is required!
Field is required!
Information
Field is required!
Field is required!
Product Description & Technical Document
22-04-2022

DS-221122080001421-1121-EN TECHNICAL DOCUMENT



It gives error when pressure difference is below the adjusted value. Shelf life: 10 years
High pressure is blown out the valve by the help of blast valveVoltage Info: 16 – 32 VDC
Pressure measurement has analog indicatorFiltration Air Flow Rate: 80m³/h
As filtration mode and ventilation modeNumber of personnel to be protected: 4-12 Personnel
It can be used on 2 modesMax. Operation Height is 3000 meters
Front Filter: is used for Coarse-Dust filtrationOperation Temperature -30°C / +55°C
Particle Filtration 99.97% Storage Temperature -40°C / +71°C
Carbon Filtration: is used for Gas Filtration

Custom-built chemical, biological, radiological and nuclear (cbrn) filtration systems for vehicles.

Complementary to our range of HVAC and APU systems for military vehicles, also develops custom-built Chemical, Biological, Radiological and Nuclear (CBRN) filtration systems specifically to meet the client’s requirement or vehicle design.

We supply a variety of systems, from the portable 54m3/h unit for six face masks, to various configurations of 170m3/h overpressure units for vehicle crew compartments.

Advantages of Vehicle CBRN System

● Bolt-on system – No vehicle changes required
● Can be installed on site, onto a vehicle already in the field
● Integrated 5.5kW Diesel Air Heater
● Independent fuel tank with integrated winterised heater and pump system
● Main pump with automatic control, for refilling heater tank from vehicle tank
● Armour enclosure of system base frame, with access hatch for easy maintenance (inside and outside of vehicle)
● Integrated overpressure valve – no modifications to vehicle
● NBC Certified 3-way change over valve
● Integrated control systems with HVAC System i.e. single control for all systems (Heating, Cooling and CBRN)
● Generic CBRN filter with hinged mounting interface mechanism
● Self-cleaning fresh air primary cyclone filter – 95% effective
● Removable secondary cloth/pleated filter – (before CBRN filter)
● DC electronic brushless overpressure fan with flow regulating control – low maintenance and low MTBF
● Complete system diagnostics from HMI, including test & display residual life of filter
● 100% Compatible with existing aircon control system
● Change CBRN filter from inside vehicle in life-threatening situations – crew does not need to leave the vehicle when loading/changing the CBRN filters

cbrn army, mira safety cm-7m, mira safety cm-6m, 40mm nato filter, 40mm nbc filter, nbc-77 sof filter, cbrn filters, blast valve, military radiation suit, cbrn equipment, nbc filter 40mm, cbrn unit, cbrn defense, cbrn specialist, mira safety cm-8m, cbrn air force, negative pressure system, what is positive pressure, cbrn filter 40mm, cbrn 40mm filter, cbrn systems, us military nbc süit, nbc vs cbrn filter, cbrn units army, cbrn vs nbc filter, air filtration system for nuclear fallout, cbrn warfare, hepa filter nuclear fallout, what is a cbrn filter, cbrn certification, best nbc air filtration system, nbc air filtration system hand crank, positive pressure system, cbrn defense specialist, positive pressure hvac system, mira safety cm-8m release date, nato 40mm gas mask filter, 40mm gas mask filter, cbrn, gas mask filters types, gas mask filter 40mm, modern military gas mask, gas mask filter types, positive pressure nbc system, masked type nbc protection system, cbrn filter, cbrn filtration system, cbrn filtration, nbc detection system

Technical Data Table
Air Flow Rate

80m³

Power

16-32V DC

Operating Temperature

-30°C / +55°C

Storage Temperature

-40°C – +71°C

System Weight

~25kg

Dimensions

330 x 370 x 440 mm

Filters

‘‘HEPA’’ filter for particle filtration
‘‘Activated carbon’’ filter for gas filtration

Number of Crew To Be Protected

4-12 Personnel

Maximum Operating Elevation

3000 m
