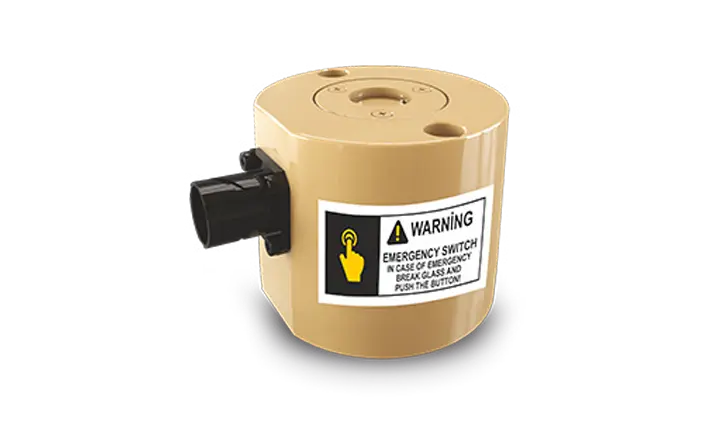

The emergency switch provides manual access to the fire extin-guishers in the system from outside the vehicle. Provides the abi-lity to activate fire extinguishers located in the crew, tyre, body, engine and other compartments protected by the system.
The manual activation switch works independently from the main controller. The emergency switch is directly connected to the battery to provide instant operation when needed.
|Giving a warning signal||Diemensions GXDXU:77,8 x 77.8 x 75 mm (±5 mm)|
|Activation of up to 3 tubes||IP67 water and dust ingress protection|
|MTBF: 150,000 hour||Salt fog test resistance 800 hours|
|Operating voltage: 16-32 VDC||MIL-STD-810H ,MIL-STD-461G, MIL-STD-1275E certifications|
|Operating temperature: -40°C +71 °C||UL, CE GOST-R standards|
-40°C – +71°C
77,8 x 77.8 x 75 mm (±5 mm)
