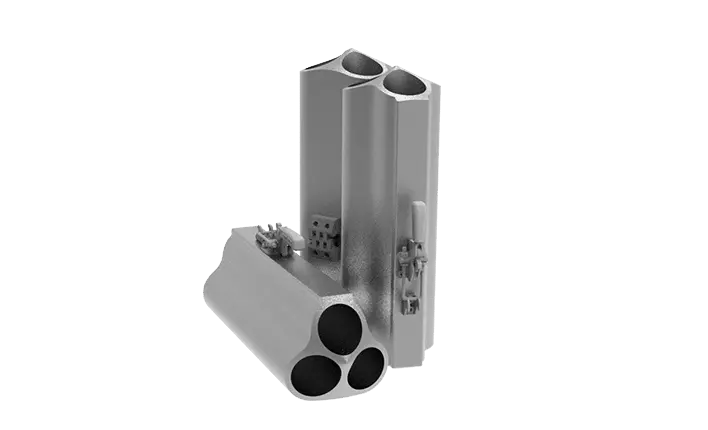

Smoke Grenade Trilauncher 37/38-40 MM
Smoke Grenade Trilauncher 37/38-40 MM
Smoke Grenade Trilauncher 37/38-40 mm is a compact smoke grenade launching system developed for military vehicle integration. Designed as an alternative to larger-caliber launchers, the system provides controlled smoke deployment while reducing logistical complexity and ammunition availability challenges encountered with 66 mm, 76 mm, and 81 mm launchers.
Smoke Grenade Trilauncher 37/38-40 MM
The Smoke Grenade Trilauncher 37/38-40 mm is designed to deploy smoke grenades for vehicle self-protection and battlefield obscuration. The system enables rapid smoke screen generation to reduce visual and sensor-based detection, supporting maneuverability and survivability of military platforms during operations.
Deployment Areas
The system is deployed on military ground vehicles requiring compact and lightweight smoke deployment capability. It is suitable for armored vehicles, tactical vehicles, and security platforms where space constraints, power efficiency, and rapid reload capability are critical operational requirements.
Configuration and Structural Design
The tri-launcher configuration supports 37 mm, 38 mm, and 40 mm smoke grenade calibers and is manufactured from high-grade aluminum for reduced weight and structural durability. The system supports over twelve different ammunition types, providing operational flexibility across various mission profiles.
Integrated full-empty sensors and a microphone-based detection system monitor launcher status and detect launch or misfire conditions. When ammunition is loaded, the system indicates “Launcher Loaded,” and once all tubes are empty, “Launcher Empty” status is displayed.
The launcher is mounted using a specialized rail system with easily accessible mounting brackets, enabling fast installation and alignment. Power requirements range between 9–36 VDC with low current consumption during firing. The system is designed to withstand more than 5000 firings before maintenance is required and provides corrosion resistance up to 1000 hours. Reloading time is less than 30 seconds per unit.
Test Standards
Smoke Grenade Trilauncher 37/38-40 mm is designed and tested in accordance with the following standards:
MIL-STD-810G for environmental durability
MIL-STD-461G for electromagnetic compatibility
These standards confirm reliable performance under harsh military environmental and electromagnetic conditions.
Functional Role
The system enables controlled and reliable smoke grenade deployment to enhance vehicle concealment and survivability. By combining compact design, sensor-based status monitoring, and rapid reloading capability, the Smoke Grenade Trilauncher 37/38-40 mm supports effective obscuration operations while minimizing vehicle integration complexity.
Developed by Nero Endustries, the system provides a sustainable and operationally efficient smoke deployment solution for modern military platforms.
