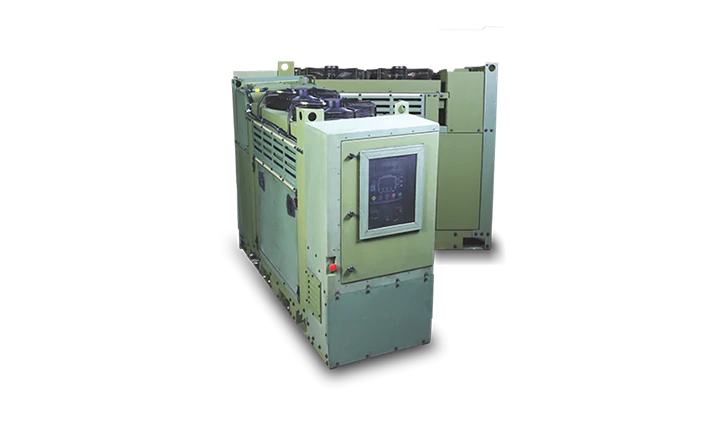

Military Generator 80 kVA – G80S
Military Generator 80 kVA – G80S
Military Generator 80 kVA – G80S is a high-capacity mobile power generation system developed to convert mechanical energy into electrical energy and provide continuous electrical supply for armed forces and law enforcement units during combat and large-scale field operations. Designed in accordance with stringent NATO efficiency requirements, this generator supports power-intensive military systems operating in harsh and demanding environments. Nero Endustries specializes in manufacturing military generators focused on operational endurance, reliability, and mission-critical performance.
Military Generator 80 kVA – G80S
Military Generator 80 kVA – G80S is designed as a portable power source for military applications requiring higher electrical capacity in the field. The generator supplies stable power to military equipment and systems with increased load demands during operations. Its design enables deployment by personnel while ensuring reliable performance under severe environmental and operational conditions.
Deployment Areas
Military Generator 80 kVA – G80S is used in operational areas where high-capacity electrical power is required during military field missions. Typical deployment includes mobile military units, ground and air platforms, emergency support equipment, communication infrastructures, medical systems, radar installations, and other power-intensive military devices. The generator is also suitable for emergency response operations in natural disasters and human-made incidents.
Configuration and Structural Design
Military Generator 80 kVA – G80S is available in multiple configurations to support different mission profiles. Variations may include differences in fuel type, system configuration, noise level, portability, size, and weight. Some configurations allow deployment without installation, while others may require full assembly prior to placement.
The generator delivers a rated power output of 80 kVA and is designed with a robust structural layout suitable for long-term field operation. Components are engineered to withstand harsh weather conditions and continuous use, supporting operational durability throughout extended missions.
System Features and Performance
Military Generator 80 kVA – G80S is manufactured using high-quality components to ensure reliable and stable performance. Integrated automatic protection mechanisms protect the system against overload, overheating, low fuel levels, and abnormal operating conditions.
The generator is capable of continuous 24/7 operation and can start reliably at temperatures below −40°C. It maintains efficient operation up to at least 60°C ambient temperature at altitudes of up to 3000 meters above sea level. Environmental factors such as sandstorms, rain, and snow do not adversely affect performance. Acoustic, electronic, and thermal signatures are minimized to meet operational requirements, while system accessibility supports efficient maintenance and long service life.
Power and Control Systems
The G80S is equipped with a military-grade AGM battery with a minimum capacity of 40Ah. The battery system supports at least three activations at −32°C ambient temperature using a pre-heater. The generator can automatically activate when mains electricity supplied to the equipment shelter is interrupted.
The control board is protected in accordance with IP67 standards, ensuring resistance to dust and water ingress. The generator operates with a diesel engine and supports F54, F34, and F65 fuel types. Electrical output is provided as 220 VAC / 50 Hz single-phase power. All connectors are manufactured in accordance with MIL-DTL-38999 and/or VG95234 standards. The generator can operate at full load for a minimum of eight hours using its internal fuel tank without refueling.
Test Standards
Military Generator 80 kVA – G80S is designed and tested in compliance with the following military standards:
-
MIL-STD-810 for environmental durability testing
-
MIL-HDBK-217F for electronic component life estimation
-
MIL-STD-461F for electromagnetic compatibility (EMC) testing
-
MIL-STD-704F for electrical power requirements of military aircraft systems
These standards confirm the generator’s ability to operate reliably under harsh military environmental and operational conditions.
Functional Role
Military Generator 80 kVA – G80S functions as a high-capacity field power source for mission-critical military systems. It enables uninterrupted operation of power-intensive communication networks, medical equipment, radar systems, emergency support units, and mobile military platforms during active missions.
All major generator components—including the engine, alternator, integrated and external control systems, and enclosures—are manufactured, assembled, and tested by Nero Endustries. This integrated production approach ensures that each element of the generator set operates in harmony, delivering long service life, operational reliability, and consistent performance from initial deployment onward.
Frequently Asked Questions (FAQ)

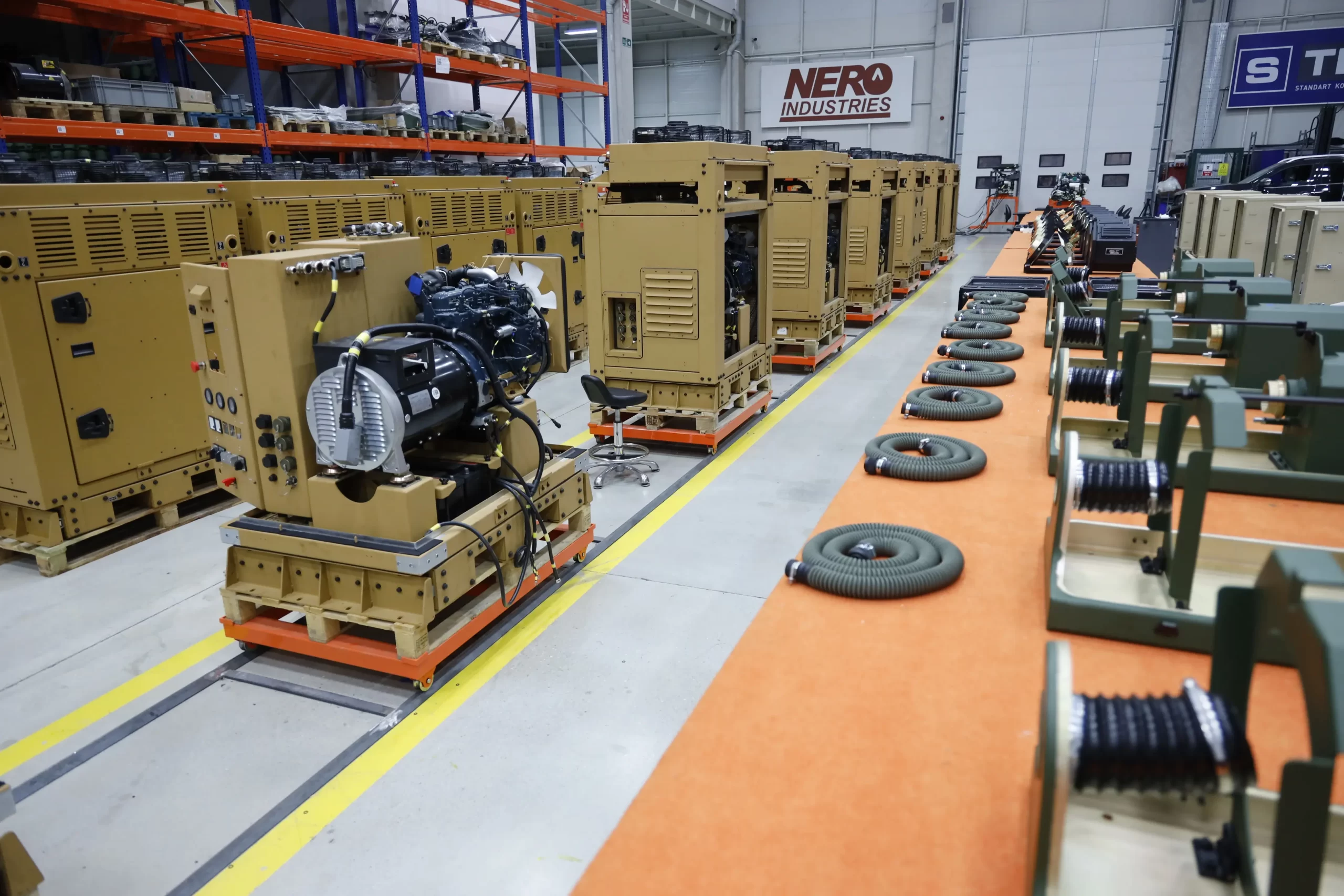

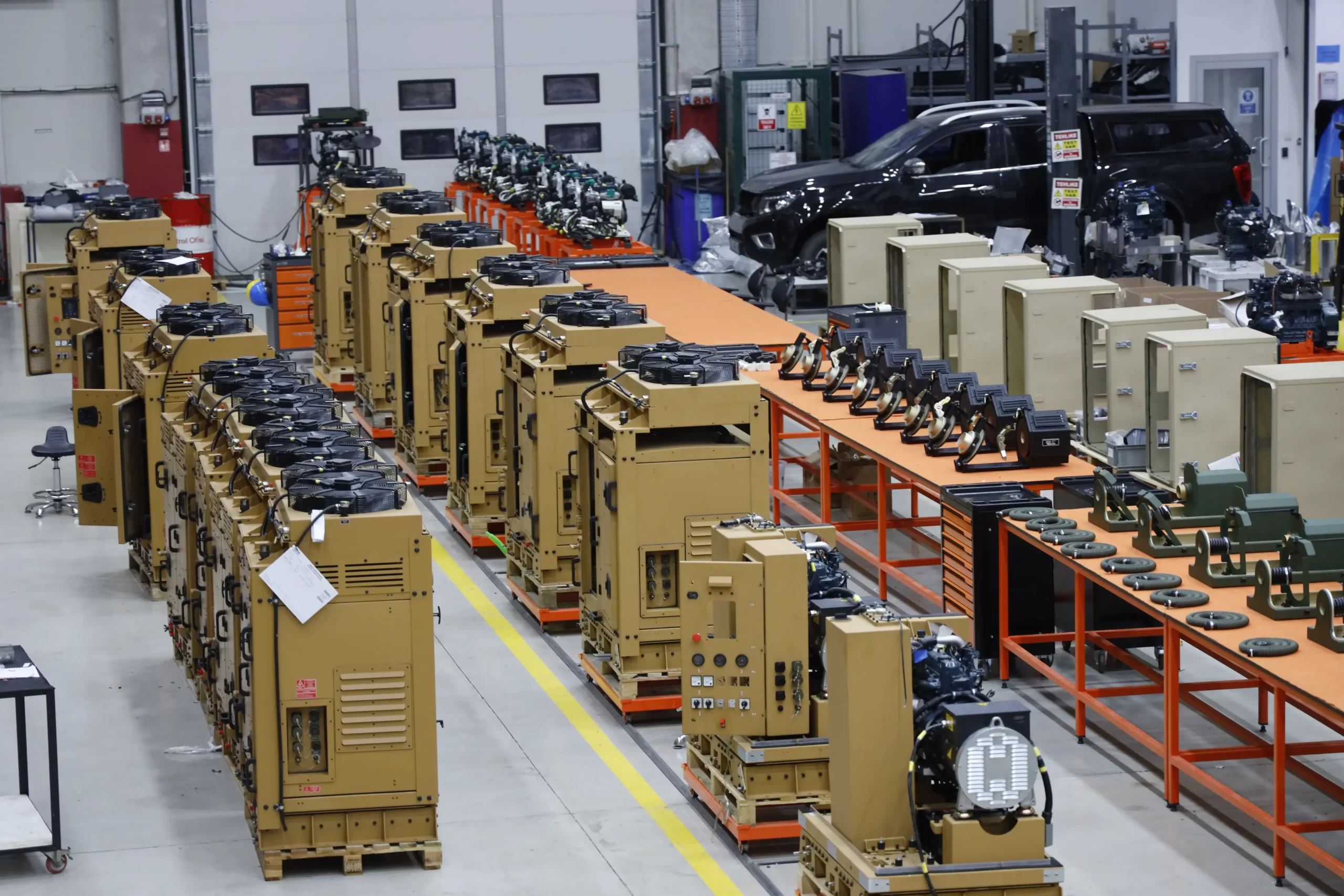

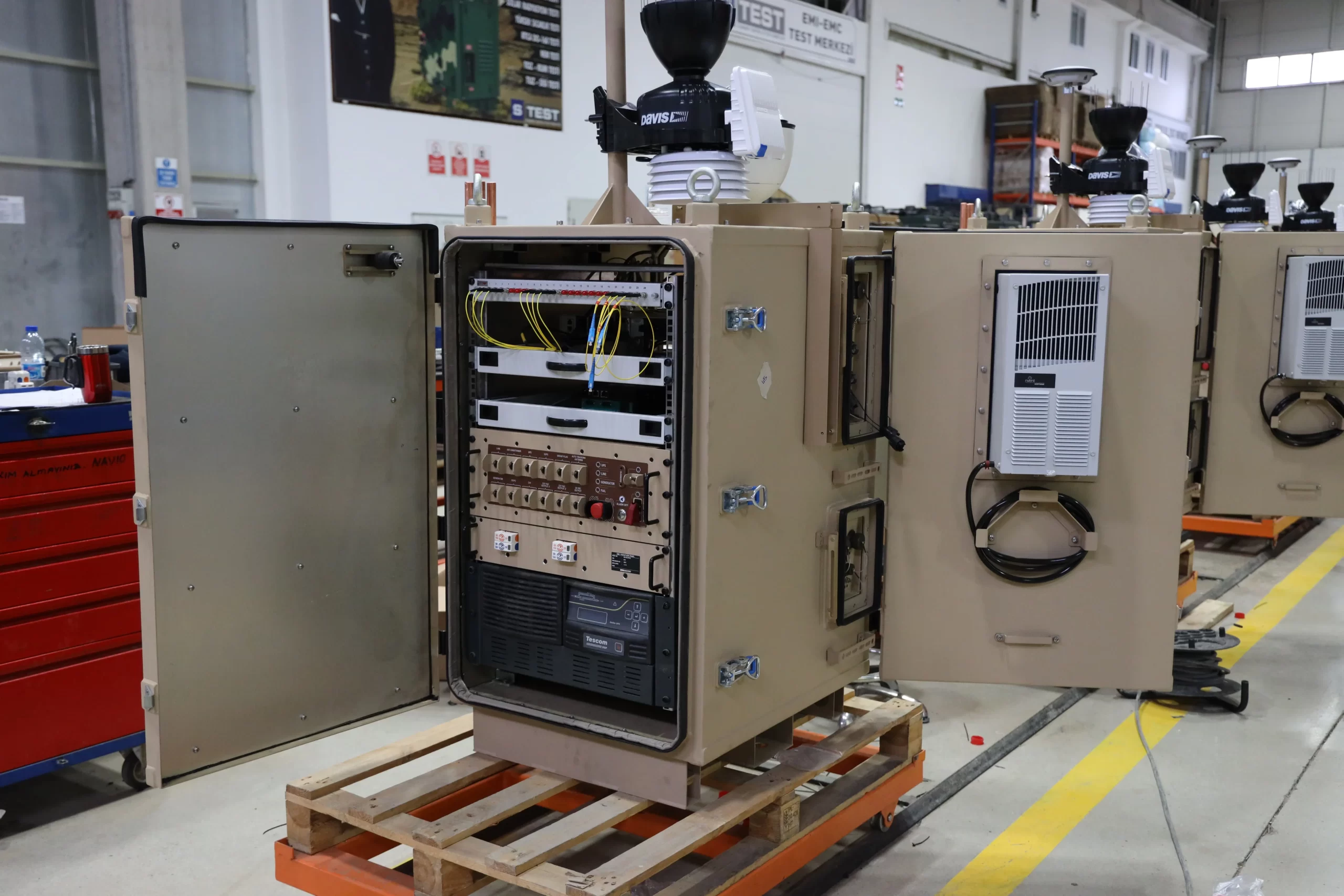

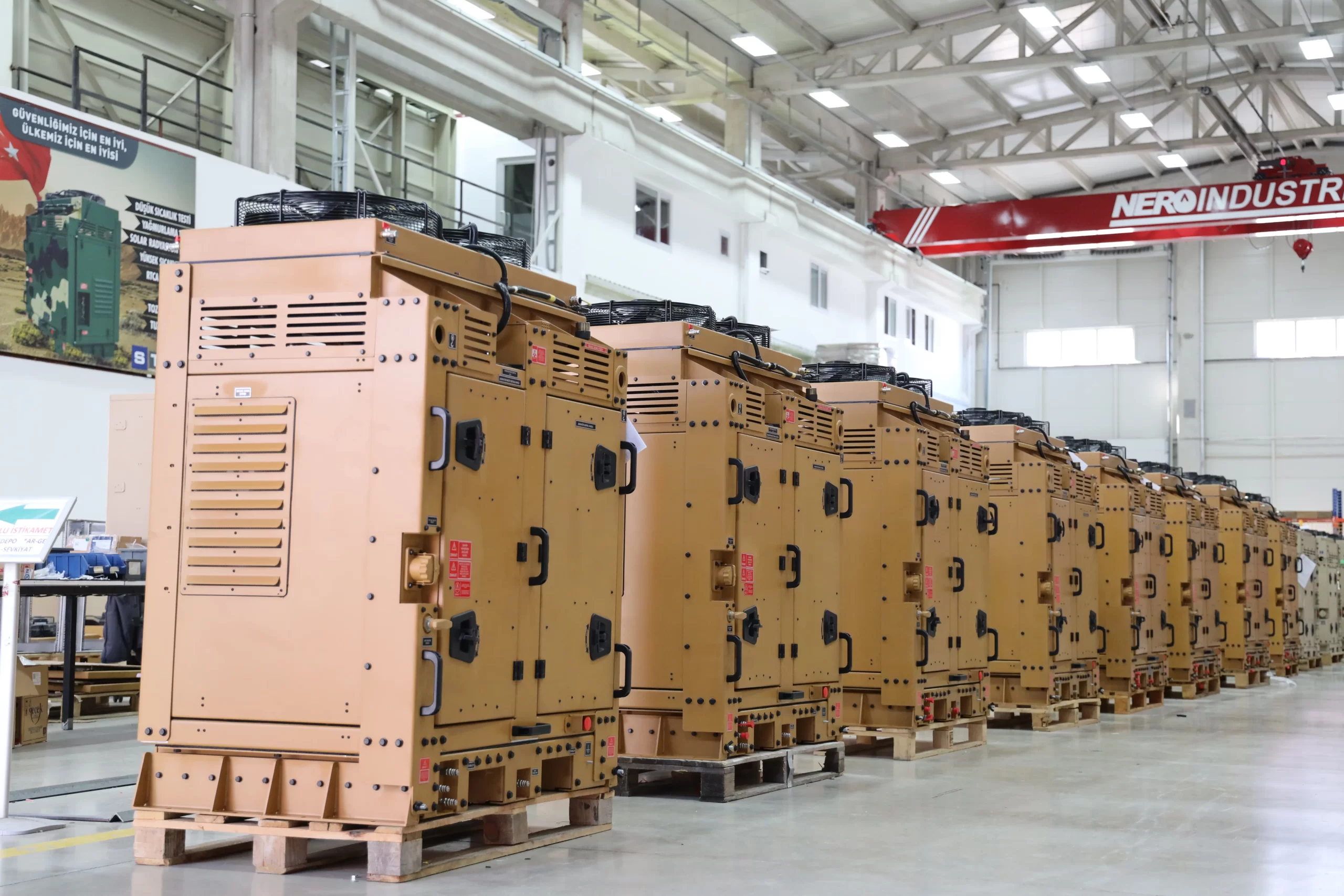

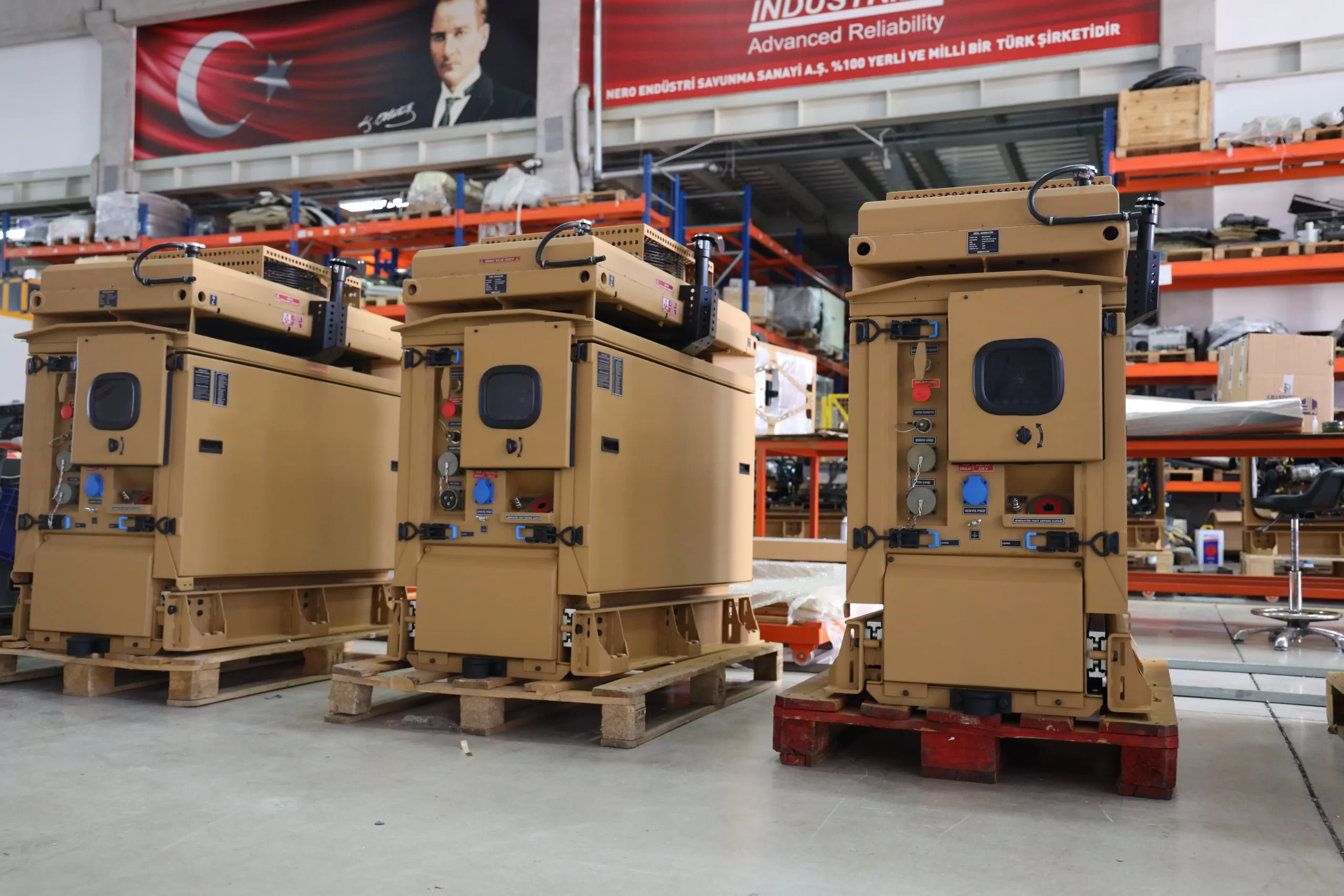

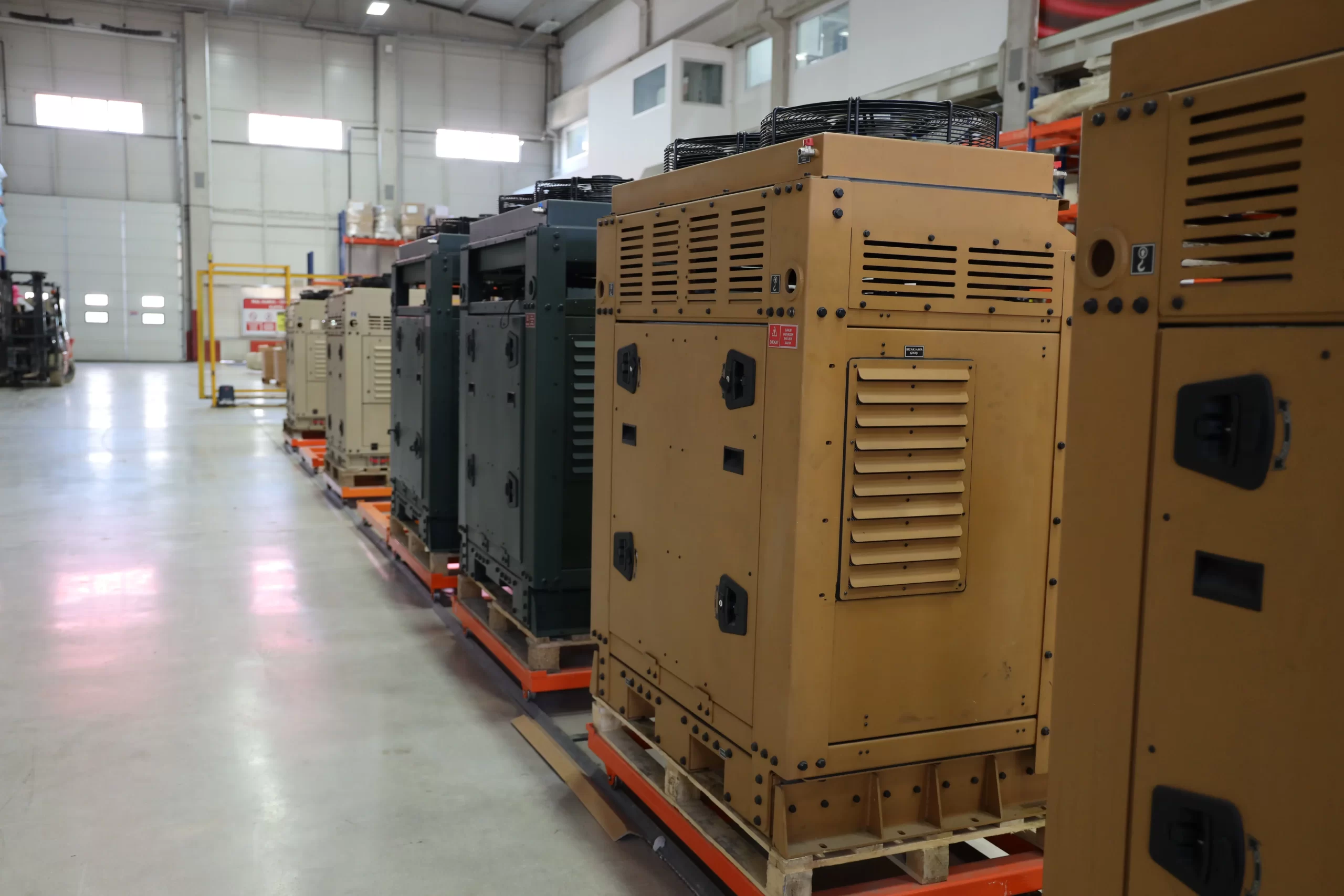

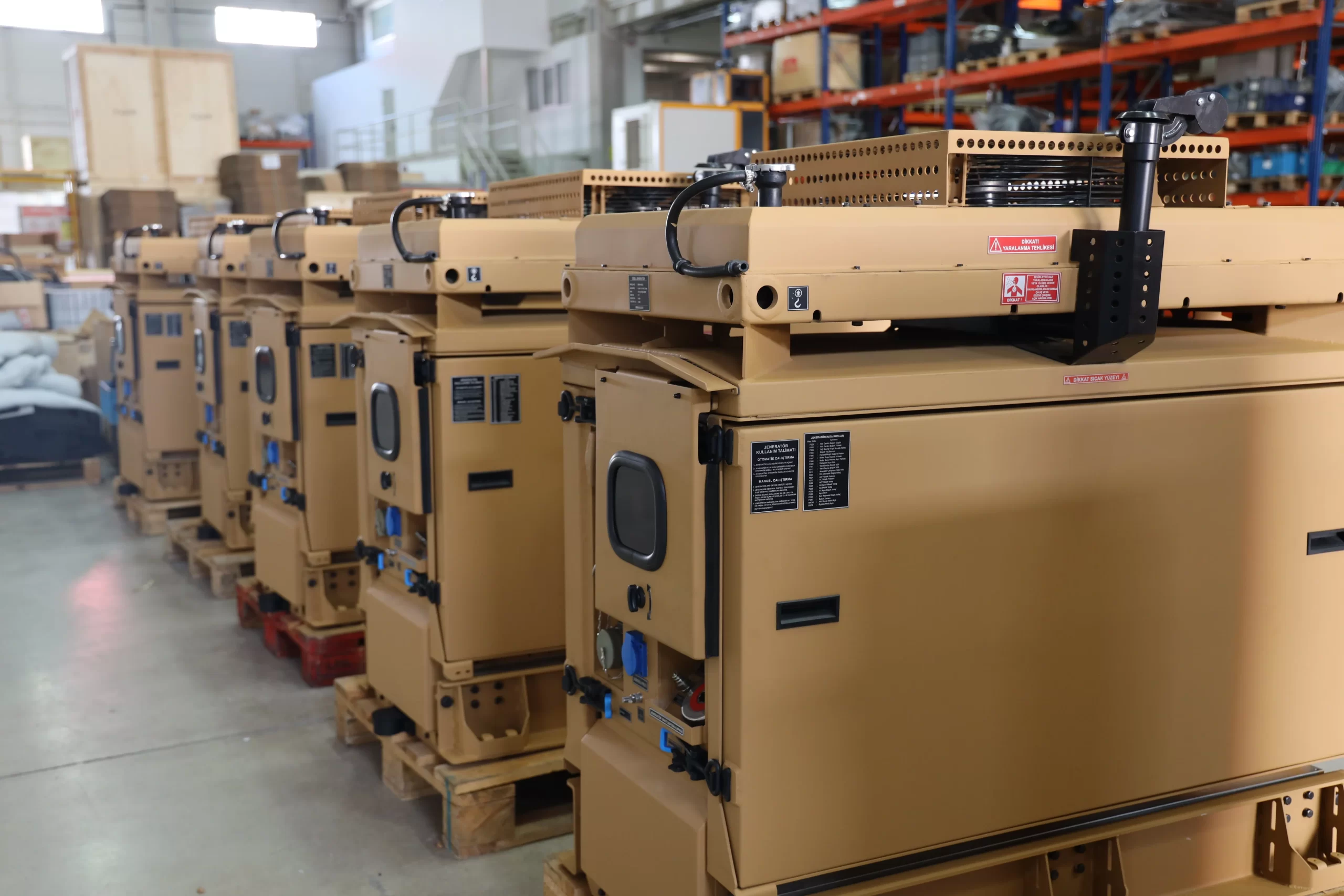

Production Line Images
