PRODUCT CODE: LWS-2

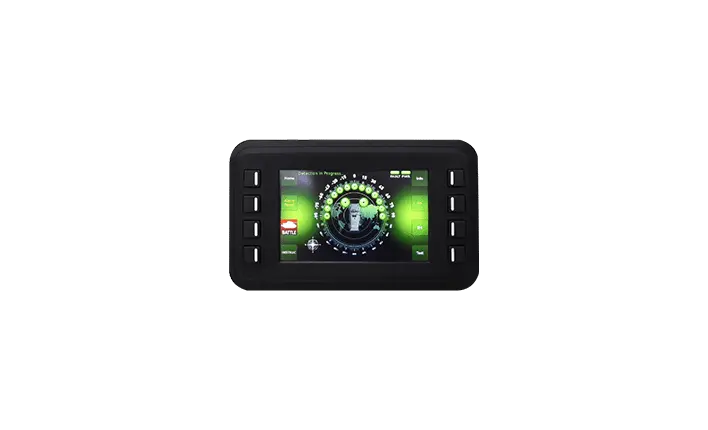

Laser Warning Control Unit LWS-2 is designed to provide seamless control over both Laser Warning System. With its touch screen interface, users can easily switch between the two menus and operate the system with minimal effort. The digital screen also displays an on-vehicle schematic, providing a clear and intuitive overview of the laser warning control unit”s operation.

TECHNICAL DOCUMENT
Laser Warning Control Unit – LWS-2 – Technical Datasheet
Download the detailed technical documentation including electrical specifications, operating conditions, dimensions, and compliance information.
Download PDF

Laser Warning Control Unit – LWS-2

This compact laser warning control unit can be easily installed in military and security vehicles, making it a versatile solution for a range of high-risk situations. With its built-in test function, users can ensure the system is functioning properly before use. The communication interface of CAN-BUS also enables the unit to communicate with other systems on the vehicle. Overall, the UMAY LWS-2 Control Unit is an essential tool for enhancing vehicle safety in high-risk areas.

Technical Data Table

Power Consumption
24 VDC nominal (16–32 V)
Capability
Controls up to 16 smoke grenades
System Control Capability
Laser warning system and smoke grenade automatic control with system switching
Smoke Grenade Detection
Detects and controls two different smoke grenade types
Built-In Test Function
Available (BIT)
Communication Interface
CANBus
System Communication
Capable of communication with other systems
Dimensions
180 x 155 x 116 ± 5 mm
Weight
1.9 ± 0.3 kg
Protection Level
IP67 (Water and Dust Ingress Protection)
Operating Temperature
-32 / +49 °C
Storage Temperature
-55°C / +85°C
Production Standards
IPC-A-610G Class 3
