GF-90 Mask Type Filtration System
GF-90 Mask Type Filtration System

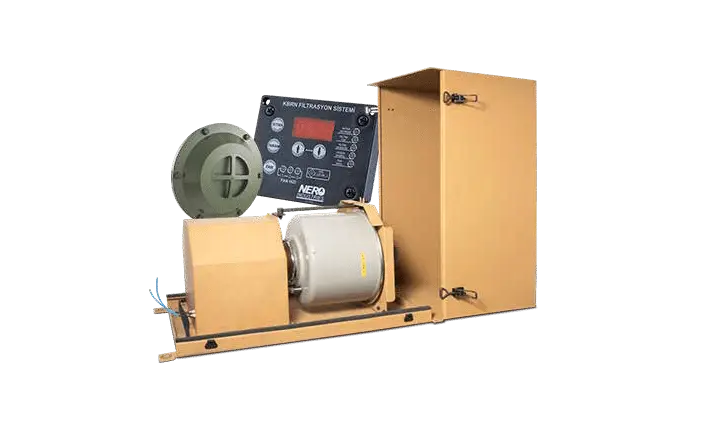

GF-90 Mask Type CBRN Filtration System is a high-capacity masked filtration solution developed to provide continuous respiratory protection for vehicle crews against chemical, biological, radiological, and nuclear threats. The system supplies filtered and adjustable fresh air directly to each masked user through dedicated individual air lines, ensuring effective protection in high-risk operational environments.
GF-90 Mask Type Filtration System
GF-90 Mask Type CBRN Filtration System is designed to protect vehicle crews by delivering filtered clean air to personnel using protective masks. With its high airflow capacity, the system supports multiple users simultaneously while maintaining stable and controlled air delivery during CBRN operations.
Deployment Areas
The system is deployed in military vehicles requiring masked-type CBRN protection. It is suitable for armored vehicles, tactical platforms, and special-purpose military vehicles operating in contaminated environments where individual mask-based air supply is required instead of full collective overpressure protection.
Configuration and System Structure
GF-90 operates with an air flow rate of 90 m³/h and distributes filtered air to each user through separate private lines connected to protective masks. The system integrates high-efficiency particulate and gas filtration components to ensure comprehensive protection against CBRN agents.
The filtration unit is ergonomically designed in accordance with MIL-STD-1472 and manufactured to comply with NATO AEP-54, MIL-STD-810, and MIL-STD-461 requirements. Filters are designed for fast installation and replacement, supporting rapid maintenance in field and combat conditions.
The system can be integrated with vehicle HVAC and auxiliary systems and supports custom configurations based on vehicle layout and operational requirements.
Test Standards
GF-90 Mask Type CBRN Filtration System is designed and validated in accordance with the following standards:
NATO AEP-54
MIL-STD-1472
MIL-STD-810
MIL-STD-461
These standards verify ergonomic suitability, environmental durability, electromagnetic compatibility, and CBRN protection performance.
Functional Role
GF-90 continuously filters ambient air and supplies clean, breathable air directly to each masked crew member. By combining high airflow capacity with individual air distribution lines, the system ensures sustained respiratory protection and operational continuity for vehicle crews exposed to CBRN threats.
Frequently Asked Questions (FAQ)
Technical Data Table
MIL-STD certifications, I275E UL,
CE, GOST-R compliant
